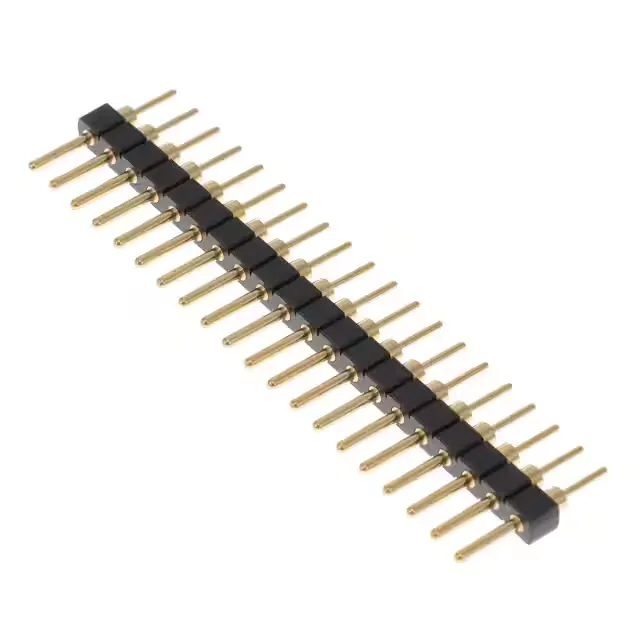

Samtec Inc. TS-120-G-A-2
MPNTS-120-G-A-2
Active
.100" SINGLE ROW SCREW MACHINE T
$9.15Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | TS |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Board |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Contact length - post | 0.210\" (5.33mm) |
| Overall contact length | 0.531\" (13.50mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.166\" (4.22mm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
