Samtec Inc. TSM-104-01-L-SV-P-TR — Pin Headers

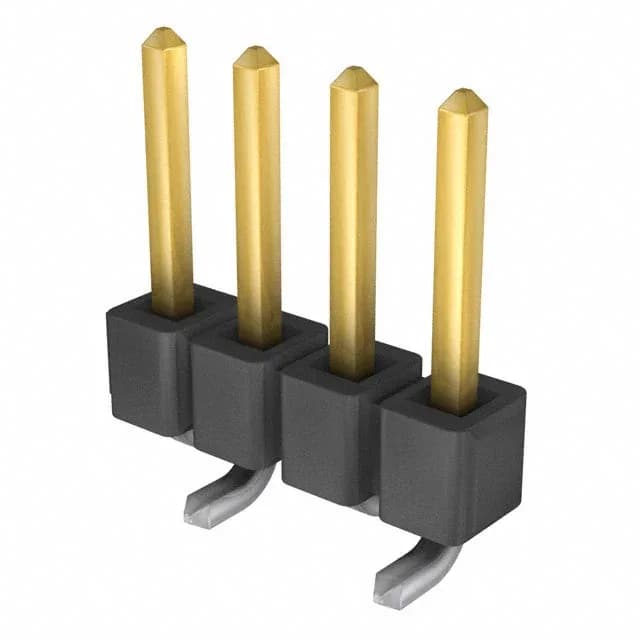

Samtec Inc. TSM-104-01-L-SV-P-TR

MPNTSM-104-01-L-SV-P-TR
Active

CONN HEADER SMD 4POS 2.54MM

$1.4200Ref. price · indicative, final on quote
Samtec Inc. TSM-104-01-L-SV-P-TR datasheet (PDF)
RoHSROHS3 Compliant
SeriesTSM
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TSM-104-01-L-SV-P-TR key specifications
ParameterValue
SeriesTSM
TypeMale Pin
MountingSurface Mount
Connector typeHeader, Cuttable
Fastening typePush-Pull
Operating temperature-55°C ~ 125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialLiquid Crystal Polymer (LCP)
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable

All specifications

TSM-104-01-L-SV-P-TR additional specifications
ParameterValue
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesPick and Place
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - mating10.0µin (0.25µm)
