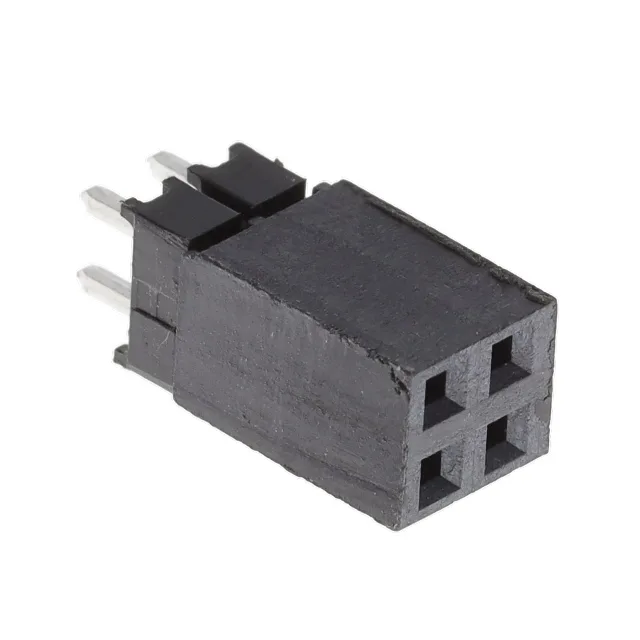

ESQ-101-12-L-S
Samtec Inc.
1-55°C ~ 125°CBulk
Ref. price$1.1100
Lead time on requestGet quote
Samtec Inc. ESQ1 Female Socket Headers Series
22 variants · Samtec Inc.
About the Samtec Inc. ESQ1 Female Socket Headers Series
IC Source Direct is a China connector distributor, supplier and independent procurement agent for Samtec Inc. ESQ1 Female Socket Headers Series components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The Samtec Inc. ESQ1 Female Socket Headers Series series groups 22 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of -, connector type of Elevated Socket and contact material of Phosphor Bronze. Variants differ by contact finish - mating, contact finish - post and contact finish thickness - mating, so you can match the exact contact finish - mating your application requires using the selection guide below. All listed Samtec Inc. ESQ1 Female Socket Headers Series part numbers are active and orderable.
Select a variant by
- Contact finish - mating
- Gold · Tin
- Contact finish - post
- Gold · Tin
- Contact finish thickness - mating
- - · 10.0µin (0.25µm) · 20.0µin (0.51µm) · 30.0µin (0.76µm)
- Contact finish thickness - post
- - · 3.00µin (0.076µm)
- Contact length - post
- 0.090\" (2.29mm) · 0.180\" (4.57mm) · 0.190\" (4.83mm) · 0.380\" (9.65mm) · 0.480\" (12.19mm)
- Insulation height
- 0.435\" (11.05mm) · 0.535\" (13.60mm) · 0.635\" (16.13mm) · 0.735\" (18.67mm)
- Operating temperature
- -55°C ~ 105°C · -55°C ~ 125°C
- Package
- Bulk · Tube
Shared specifications
- Applications
- -
- Connector type
- Elevated Socket
- Contact material
- Phosphor Bronze
- Contact shape
- Square
- Current rating
- 5.7A per Contact
- Fastening type
- Push-Pull
- Features
- -
- Insulation color
- Black
- Insulation material
- Liquid Crystal Polymer (LCP)
- IP rating
- -
- Mated stacking heights
- -
- Material flammability rating
- UL94 V-0
Variant comparison
| Parameter | ESQ-101-12-L-S | ESQ-102-12-G-S | ESQ-102-12-L-D | ESQ-102-23-G-D | ESQ-102-33-G-S | ESQ-102-44-S-D |
|---|---|---|---|---|---|---|
| Contact finish - mating | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact finish - post | Tin | Gold | Tin | Gold | Gold | Tin |
| Contact finish thickness - mating | 10.0µin (0.25µm) | 20.0µin (0.51µm) | 10.0µin (0.25µm) | 20.0µin (0.51µm) | 20.0µin (0.51µm) | 30.0µin (0.76µm) |
| Contact finish thickness - post | - | 3.00µin (0.076µm) | - | 3.00µin (0.076µm) | 3.00µin (0.076µm) | - |
| Contact length - post | 0.090\" (2.29mm) | 0.090\" (2.29mm) | 0.090\" (2.29mm) | 0.190\" (4.83mm) | 0.090\" (2.29mm) | 0.180\" (4.57mm) |
| Insulation height | 0.435\" (11.05mm) | 0.435\" (11.05mm) | 0.435\" (11.05mm) | 0.535\" (13.60mm) | 0.635\" (16.13mm) | 0.735\" (18.67mm) |
| Operating temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Package | Bulk | Bulk | Bulk | Bulk | Bulk | Bulk |
Request a quote on any Samtec Inc. ESQ1 Female Socket Headers Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
