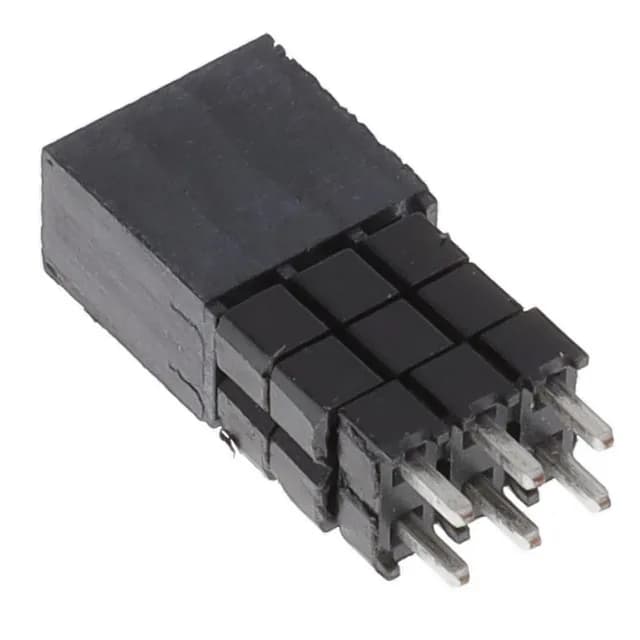

Samtec Inc. ESQ-103-33-L-D
MPNESQ-103-33-L-D
Active
CONN SOCKET 6POS 0.1 GOLD PCB
$2.8500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesESQ
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | ESQ |
| Type | Forked |
| Mounting | Through Hole |
| Connector type | Elevated Socket |
| Fastening type | Push-Pull |
| Voltage rating | 550VAC |
| Current rating | 5.7A per Contact |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.635\" (16.13mm) |
| Insulation material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.090\" (2.29mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
