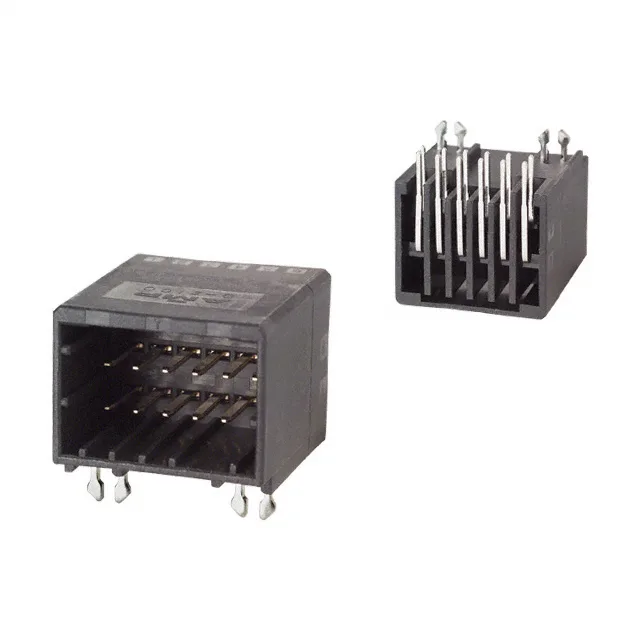

1376009-1
TE Connectivity AMP Connectors
8-55°C~105°CBoard Lock
Ref. price$3.4100
Lead time on requestGet quote ›
TE Connectivity AMP Connectors 1376 Series
23 variants · TE Connectivity AMP Connectors
About the TE Connectivity AMP Connectors 1376 Series
The TE Connectivity AMP Connectors 1376 Series series groups 23 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common connector type of Header, contact finish - post of Tin and contact finish thickness - post of -. Variants differ by applications, contact finish - mating and contact finish thickness - mating, so you can match the exact applications your application requires using the selection guide below. All listed TE Connectivity AMP Connectors 1376 Series part numbers are active and orderable.
Select a variant by
- Applications
- Automotive · General Purpose, Industrial
- Contact finish - mating
- Gold · Tin
- Contact finish thickness - mating
- - · 15.0µin (0.38µm)
- Contact length - mating
- - · 0.217\" (5.50mm)
- Contact length - post
- 0.131\" (3.33mm) · 0.134\" (3.40mm) · 0.150\" (3.81mm) · 0.157\" (4.00mm)
- Contact material
- Brass · Copper Alloy
- Contact shape
- Rectangular · Square
- Current rating
- - · 5A
Shared specifications
- Connector type
- Header
- Contact finish - post
- Tin
- Contact finish thickness - post
- -
- Ingress protection
- -
- Mated stacking heights
- -
- Overall contact length
- -
- Shrouding
- Shrouded - 4 Wall
- Termination
- Solder
Variant comparison
| Parameter | 1376009-1 | 1376020-1 | 1376020-2 | 1376111-2 | 1376113-2 | 1376133-2 |
|---|---|---|---|---|---|---|
| Applications | General Purpose, Industrial | General Purpose, Industrial | General Purpose, Industrial | Automotive | Automotive | General Purpose, Industrial |
| Contact finish - mating | Gold | Gold | Gold | Tin | Tin | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | - | - | 15.0µin (0.38µm) |
| Contact length - mating | - | - | - | 0.217\" (5.50mm) | 0.217\" (5.50mm) | - |
| Contact length - post | 0.134\" (3.40mm) | 0.134\" (3.40mm) | 0.134\" (3.40mm) | 0.157\" (4.00mm) | 0.157\" (4.00mm) | 0.150\" (3.81mm) |
| Contact material | Copper Alloy | Copper Alloy | Copper Alloy | Brass | Brass | Copper Alloy |
| Contact shape | Rectangular | Rectangular | Rectangular | Square | Square | Rectangular |
| Current rating | 5A | 5A | 5A | - | - | - |
Request a quote on any TE Connectivity AMP Connectors 1376 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the TE Connectivity AMP Connectors 1376 Series variants differ?
- TE Connectivity AMP Connectors 1376 Series part numbers differ by applications, contact finish - mating, contact finish thickness - mating and contact length - mating. Use the selection guide above to pick by applications.
- How many TE Connectivity AMP Connectors 1376 Series part numbers are listed?
- 23 TE Connectivity AMP Connectors 1376 Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for TE Connectivity AMP Connectors 1376 Series?
- Request a quote (RFQ) for any TE Connectivity AMP Connectors 1376 Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
