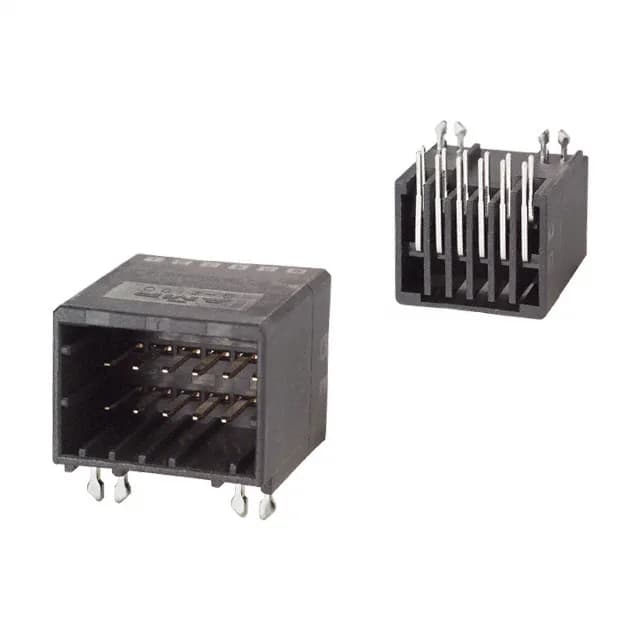

TE Connectivity AMP Connectors, Dynamic D-2100 series, header, 12 positions, 2.50mm pitch, right-angle through-hole, gold-plated mating contacts, 5 A per circuit, 250 VAC, shrouded with board lock.
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250VAC |
| Current rating | 5A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.579\" (14.70mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1376020-2: This is a 12-position, 2-row header from the Dynamic D-2100 series, pitched at 0.098" (2.50 mm) — a common spacing for industrial wire-to-board and board-to-board links. It mates with the matching D-2100 receptacle (sold separately) to complete the connection.
Buyers need a reliable source to purchase the exact part quickly, especially for production or repair.
Pricing directly affects BOM cost; buyers compare across distributors before committing.
Stock availability determines lead time; out-of-stock parts can delay projects or require substitutions.
Engineers need full specs (pinout, dimensions, ratings) to validate fit and design-in the part.
For a header, the mating connector (receptacle) must be identified to ensure system compatibility.
Sourcing buyers and brokers need cross-reference options when the exact part is unavailable or obsolete.
