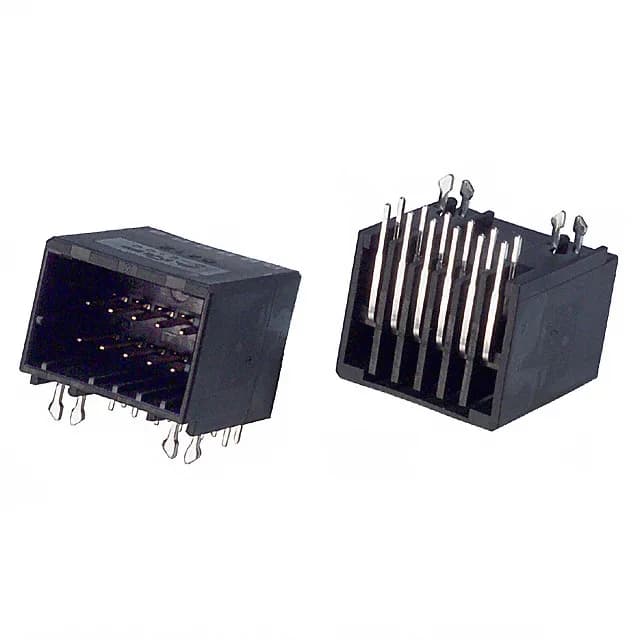

TE Connectivity AMP Dynamic D-2100 series, 1376020-1, board-to-board/cable header, 12 positions, 2.50mm pitch, right-angle through-hole, shrouded 4-wall, gold-plated mating tabs, 5A, 250VAC, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-2100 |
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250VAC |
| Current rating | 5A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.579\" (14.70mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 1376020-1 is a 12-position, 2-row header from TE's Dynamic D-2100 series, pitched at 2.50mm. The mating interface is gold-plated (15.0µin) on rectangular tabs, rated for 5A per contact at 250VAC.
The insulation height is 14.70mm, so the shroud stands well above the board surface — enough clearance for the mating receptacle's latch to engage fully.
The mating pitch is 2.50mm (0.098 inches), dual-row.
