TE Connectivity AMP Connectors 1376009-1 — Pin Headers

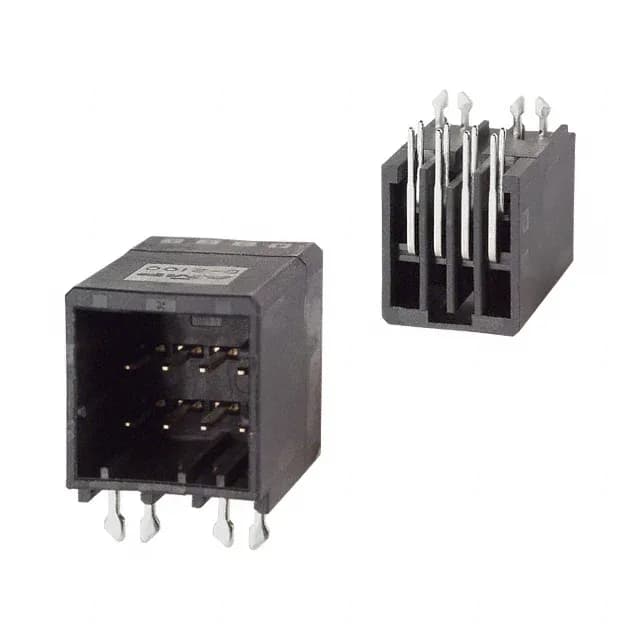

1376009-1 TE Dynamic D-2100 Right Angle Header 8 Pos 2.5mm

MPN1376009-1
Active

TE Connectivity AMP Connectors Dynamic D-2100 series, 1376009-1, 8-position, 2-row, shrouded header, 2.50 mm pitch, right-angle through-hole, gold-plated mating contacts, rated 5 A per circuit at 250 VAC, board lock, UL94 V-0.

$3.4100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1376009-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDynamic D-2100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1376009-1 key specifications
ParameterValue
SeriesDynamic D-2100
TypeTab
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250VAC
Current rating5A
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.579\" (14.70mm)
Insulation materialThermoplastic, Polyester, Glass Filled

All specifications

1376009-1 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows2
Pitch0.098\" (2.50mm)
Positions8
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Contact finish - matingGold
Contact finish thickness - mating15.0µin (0.38µm)

Product details

2.50 mm Pitch, 8-Position Right-Angle Header — Board-Fit and Routing

The 1376009-1 is an 8-position, 2-row, shrouded header from TE's Dynamic D-2100 series, terminated through-hole with a right-angle orientation.

Sourcing and Lifecycle — Active, Sourced per RFQ

It is ROHS3 compliant.

Mating Half and Termination — What It Connects To

This header mates with the Dynamic D-2100 series receptacle housing (sold separately). The solder termination accepts standard through-hole soldering processes.

Compliance and Environmental Range

Black insulation color is standard.

Frequently asked questions

Where can I buy 1376009-1 and how do I get a price?

No stock-holding claim; each order is sourced per your BOM line.

What is the mating connector for 1376009-1?

The mating half is a Dynamic D-2100 series receptacle housing from TE Connectivity. The header uses a detent lock fastening type; confirm the receptacle's locking feature matches.
