1546306-3
TE Connectivity AMP Connectors
0.374\" (9.50mm)BlackBuchanan
Ref. price$1.3800
Lead time on requestGet quote
Buchanan Terminal Block Header
6 variants · TE Connectivity AMP Connectors
About the Buchanan Terminal Block Header
IC Source Direct is a China connector distributor, supplier and independent procurement agent for Buchanan Terminal Block Header components, matching housing, contact and mating cycles across the Shenzhen interconnect channel. The TE Connectivity AMP Connectors Buchanan Terminal Block Header series groups 6 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common barrier type of 2 Wall (Dual), bottom termination of Closed and color of Black. Variants differ by material - insulation, number of circuits and number of wire entries, so you can match the exact material - insulation your application requires using the selection guide below. All listed Buchanan Terminal Block Header part numbers are active and orderable.
Select a variant by
- Material - insulation
- Polybutylene Terephthalate (PBT) · Thermoplastic
- Number of circuits
- 2 · 3 · 4 · 6 · 7 · 8
- Number of wire entries
- 4 · 6 · 8 · 12 · 14 · 16
- Pitch
- 0.374\" (9.50mm) · 0.375\" (9.53mm)
- Top termination
- Screws · Screws with Captive Plate
Shared specifications
- Barrier type
- 2 Wall (Dual)
- Bottom termination
- Closed
- Color
- Black
- Current rating
- 20A
- Features
- Flange
- Material flammability rating
- UL94 V-0
- Mounting
- Chassis, Panel
- Operating temperature
- -40°C ~ 120°C
- Package
- Bulk
- Rows
- 2
- Terminal block type
- Barrier Block
- Terminal screw finish
- Nickel
Variant comparison

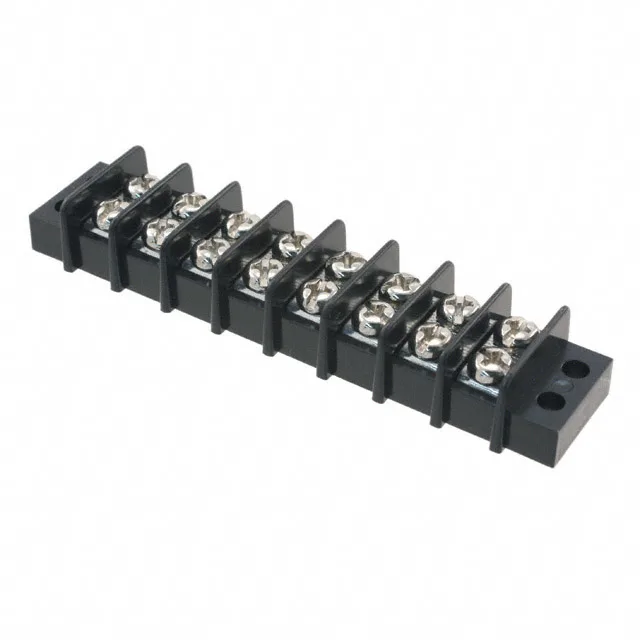

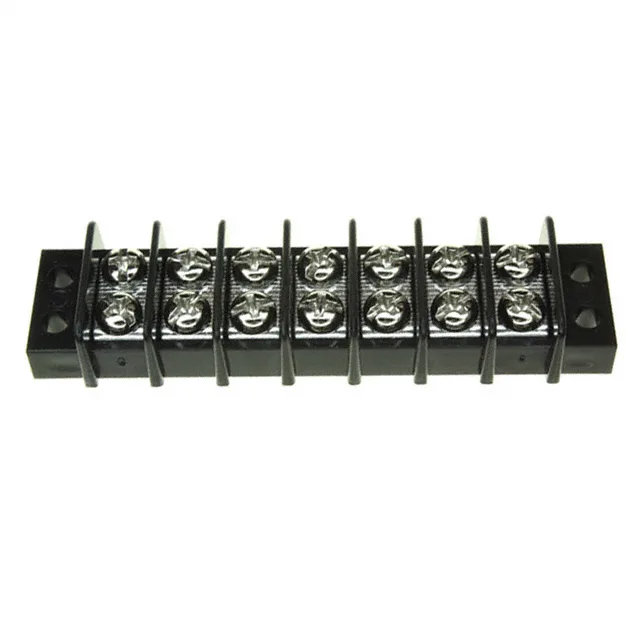

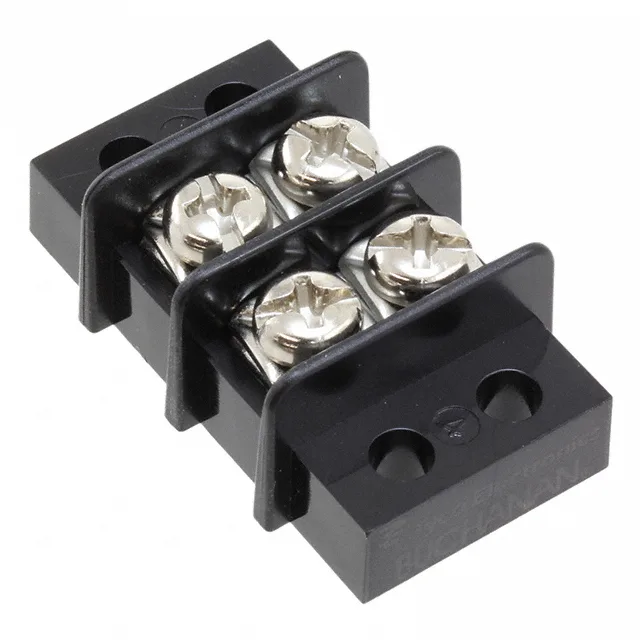

| Parameter | 1546306-3 | 1546306-4 | 1546306-6 | 1546306-7 | 1546306-8 | 1546307-2 |
|---|---|---|---|---|---|---|
| Material - insulation | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Polybutylene Terephthalate (PBT) |
| Number of circuits | 3 | 4 | 6 | 7 | 8 | 2 |
| Number of wire entries | 6 | 8 | 12 | 14 | 16 | 4 |
| Pitch | 0.374\" (9.50mm) | 0.374\" (9.50mm) | 0.374\" (9.50mm) | 0.374\" (9.50mm) | 0.374\" (9.50mm) | 0.375\" (9.53mm) |
| Top termination | Screws | Screws | Screws | Screws | Screws | Screws with Captive Plate |
Request a quote on any Buchanan Terminal Block Header part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
