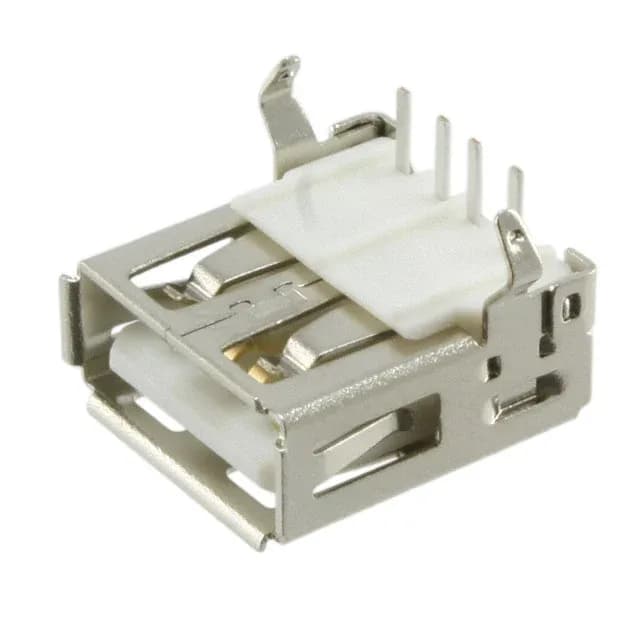

Würth Elektronik WR-COM USB-A receptacle, order code 61400416021, 4 contacts, single port, 1.5 A, 30 VAC, gold-plated contacts, through-hole right-angle, solder termination, shielded.
| Parameter | Value |
|---|---|
| Series | WR-COM |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Current rating | 1.5A |
| Positions | 4 |
| Mounting feature | Horizontal |
| Operating temperature | -40°C ~ 105°C |
| Insulation color | White |
| Shell (Shielding material) | Brass |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The 61400416021: Gold-plated contacts and a shielded brass shell support USB 2.0 signal integrity; the board lock holds the connector during reflow and against cable strain.
The 61400416021 mounts through-hole right-angle (horizontal), while siblings 614004134726 and 614004135023 mount vertically — the board footprint and USB 2.0 rating are shared across the three, so the choice follows the cable exit direction.
