Würth Elektronik 614004190021 — USB / HDMI Cable Assemblies

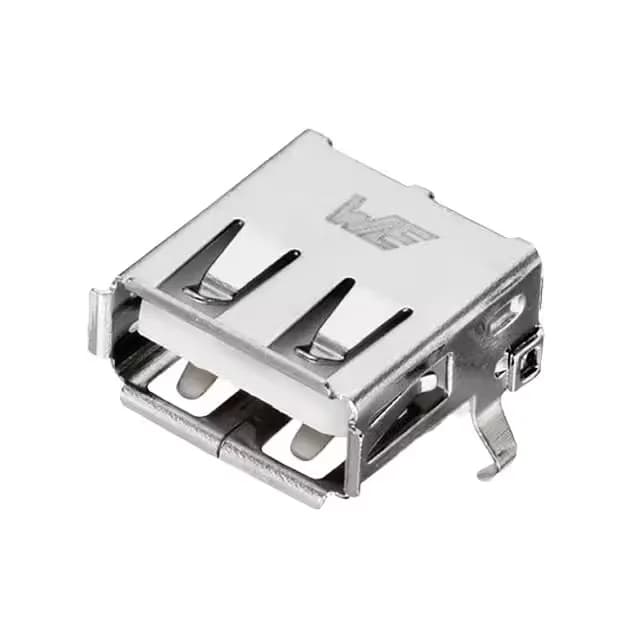

Würth Elektronik 614004190021 USB-A Receptacle, 4 Pos, R/A

MPN614004190021
Active

Würth Elektronik WR-COM USB-A receptacle, order code 614004190021, 4 contacts, USB 2.0, 30VAC, 0.5A / 3A, unshielded, through-hole right-angle, gold-plated contacts, solder termination.

$1.44Ref. price · indicative, final on quote
Würth Elektronik 614004190021 datasheet (PDF)
RoHSROHS3 Compliant
SeriesWR-COM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

614004190021 key specifications
ParameterValue
SeriesWR-COM
MountingThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Current rating0.5A, 3A
Positions4
Mounting featureHorizontal
Operating temperature-40°C ~ 85°C
Insulation colorWhite
Shell (Shielding material)Brass
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

614004190021 additional specifications
ParameterValue
PackageTray
FeaturesBoard Lock
ShieldingUnshielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB-A receptacle, 4 contacts, unshielded

The 614004190021 is the 4-contact unshielded member of Würth Elektronik's WR-COM USB-A receptacle line, USB 2.0 rated. Through-hole right-angle mounting with board lock, gold-plated contacts, rated 30VAC and 0.5A / 3A per contact, 1500 mating cycles.

Unshielded vs shielded — same footprint

The 614004190021 is the unshielded variant of the WR-COM USB-A receptacle; the shielded sibling 61400416021 shares the same 4-contact, USB 2.0, gold-plated, through-hole right-angle footprint, board lock, and 1500 mating cycles.

Frequently asked questions

What is the difference between 614004190021 and 61400416021?

The 614004190021 is unshielded; the 61400416021 is shielded. Both are 4-contact USB-A receptacles with the same through-hole right-angle footprint, board lock, gold contacts, and 1500 mating cycles.
