Würth Elektronik 629105150921 — USB / HDMI Cable Assemblies

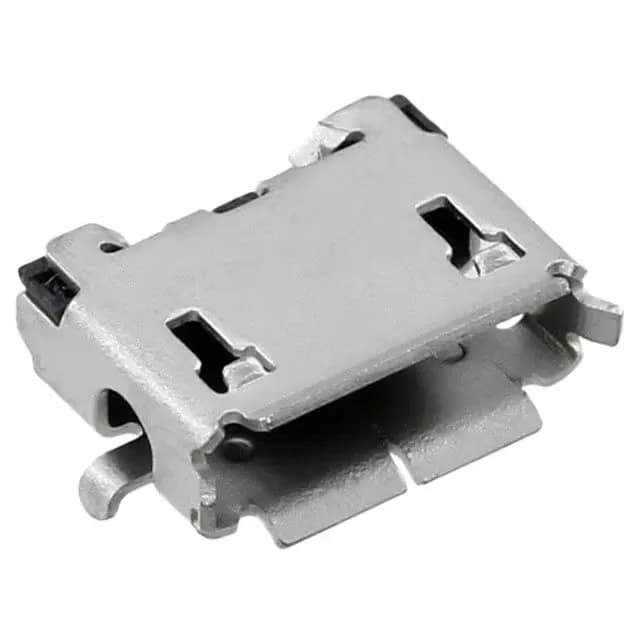

Würth WR-COM 629105150921 USB micro AB Receptacle

MPN629105150921
Active

Würth Elektronik WR-COM USB micro AB receptacle, order code 629105150921, 5 contacts, 1 port, USB 2.0, shielded, gold-plated contacts, surface-mount right-angle, solder termination, 30VAC, 1A / 1.8A.

$2.11Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-COM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

629105150921 key specifications
ParameterValue
SeriesWR-COM
MountingSurface Mount, Right Angle; Through Hole
Connector typeUSB - micro AB
Voltage - rated30VAC
Current rating1A, 1.8A
Positions5
Mounting featureHorizontal
Operating temperature-40°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle

All specifications

629105150921 additional specifications
ParameterValue
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB micro AB receptacle — shielded, 10000-cycle rated

The 629105150921 is the 5-contact USB micro AB receptacle in Würth Elektronik's WR-COM series, rated for USB 2.0 and shielded for EMI containment.

Same-series peer — micro B vs micro AB

The 629105150921 (micro AB) mates with both micro A and micro B plugs. The sibling 629105150521 is a micro B receptacle — same 5 contacts, same gold plating, same 10000-cycle rating, but accepts only micro B plugs. The 629105136821 adds solder retention features to the micro B version.

Frequently asked questions

What compliance documentation does Würth Elektronik provide for 629105150921?

The part is ROHS3 Compliant. The housing material is rated UL94 V-0.
