Würth Elektronik 685119136923 — USB / HDMI Cable Assemblies

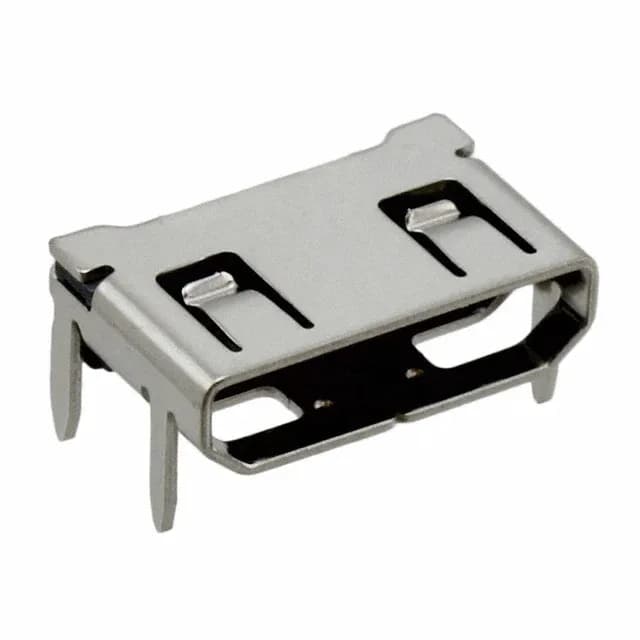

Würth WR-COM 685119136923 Mini HDMI Receptacle, 19 Pos, 0.5A

MPN685119136923
Active

Würth Elektronik WR-COM mini HDMI receptacle, order code 685119136923, 19 contacts, 0.5 A, 40 V, gold-plated contacts, shielded, surface-mount right-angle, solder termination.

$3.06Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-COM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — typically 7–15 days door-to-door
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

685119136923 specifications
ParameterValue
SeriesWR-COM
MountingSurface Mount, Right Angle; Through Hole
Connector typeHDMI - Mini
Voltage - rated40V
Current rating0.5A
Positions19
Mounting featureHorizontal
Operating temperature-25°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Brass
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
Number of ports1

Product details

Mini HDMI receptacle, 19 contacts, 0.5 A

The 685119136923: Gold-plated contacts and a shielded brass shell support 1500 mating cycles; the SMT right-angle mount places the connector horizontally on the board edge.

Series siblings at 19 contacts

Within the WR-COM mini HDMI family the 685119136923 shares the 19-contact count and 0.5 A rating with the 685119134923 (standard HDMI) and the 685119248223 / 685119248123 (micro HDMI with board guide and 5000 mating cycles) — the pitch and footprint differ by connector type, so the selection depends on the mating cable interface.
