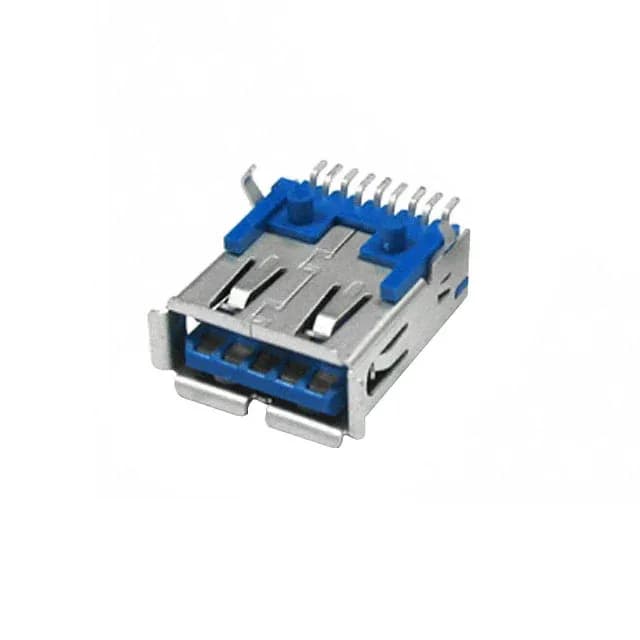

Würth Elektronik WR-COM USB-A receptacle, order code 692122030100, 9 contacts, USB 3.2 Gen 1 (Superspeed), shielded, gold-plated contacts, surface-mount right-angle, solder termination, 5000 mating cycles.
| Parameter | Value |
|---|---|
| Series | WR-COM |
| Mounting | Surface Mount, Right Angle; Through Hole |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Current rating | 0.25A, 1.8A |
| Positions | 9 |
| Mounting feature | Horizontal |
| Operating temperature | -20°C ~ 85°C |
| Insulation color | Blue |
| Shell (Shielding material) | Brass |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide, Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) |
| Number of ports | 1 |
The 692122030100 is a 9-contact USB-A receptacle from the Würth Elektronik WR-COM series, specified for USB 3.2 Gen 1 (5 Gbps) signal duty. It mounts surface-mount right-angle with board locks for reflow retention, carries gold-plated contacts rated 0.25 A and 1.8 A per pin, and is rated for 5000 mating cycles.
The part is ROHS3 compliant. Würth Elektronik provides the compliance declaration with the product documentation.
