What this 75 Ohm isolated BNC jack is for

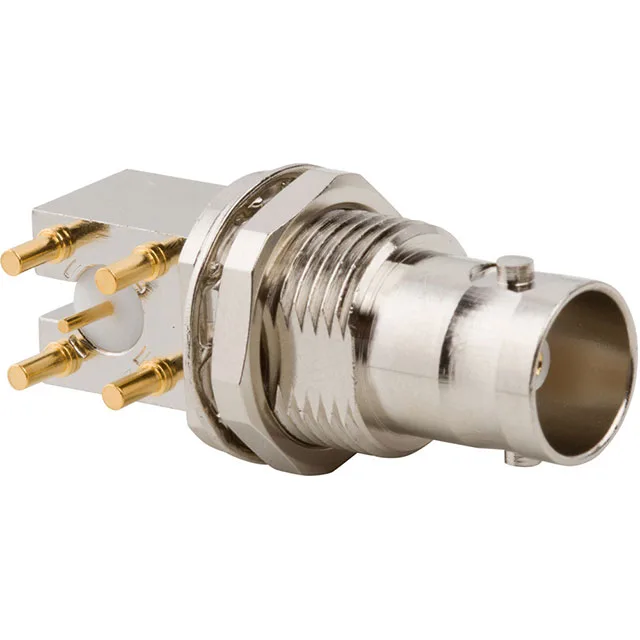

The 031-70578-12G: It's a single-port, female socket (jack) in the BNC style, with a bayonet lock for quick quarter-turn mating. The 75 Ohm impedance tells you this is spec'd for the video/CCTV/telecom side of the RF world, not the 50 Ohm radio chain. The isolated feature means the outer conductor is DC-isolated from the panel ground — useful when you need to break a ground loop without adding an in-line isolator.
Mounting and termination — panel bulkhead with right-angle PCB tails
What the 12 GHz and 500-cycle ratings mean for your application
The 12 GHz frequency ceiling is high for a 75 Ohm BNC — most 75 Ohm BNCs top out around 1-4 GHz. That headroom means this jack will pass 3G-SDI, 12G-SDI, or broadband RF distribution without rolling off the signal edges. The 500 mating cycles, combined with the gold-plated brass center contact, tell you this connector is built for field-service or test-bench reconnect duty, not a one-and-done install.
