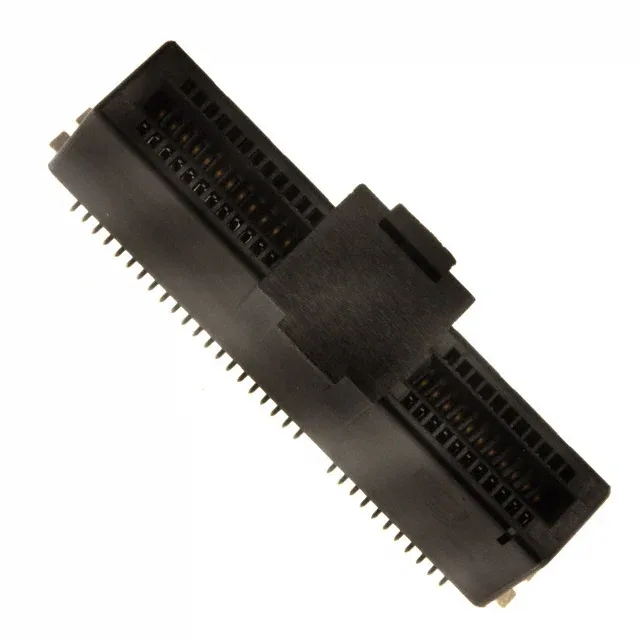

10061913-101CLF — Amphenol product photo
Amphenol

Amphenol FCI 10061913-101CLF PCI Express Female Connector

MPN10061913-101CLF
Active

Amphenol FCI PCI Express™, 64 Position Female Connector, 0.039" (1.00mm) Pitch, Surface Mount, Solder Termination, Dual Row, Gold 30.0µin, Tray

$5.7100Ref. price · indicative, final on quote
StockIn Stock (17)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10061913-101CLF Technical Specifications
ParameterValue
Card typePCI Express™
GenderCantilever
Mounting typeSurface Mount
Operating temperature-55°C ~ 85°C
ColorBlack
Contact materialCopper Alloy
Material - insulationPolyamide (PA), Nylon, Glass Filled
Pitch0.039\" (1.00mm)
PackageTray
FeaturesBoard Guide, Locking Ramp, Pick and Place, Solder Retention
Read outDual
TerminationSolder
Card thickness0.062\" (1.57mm)
Contact finishGold
Rows2
Positions64
Contact finish thickness30.0µin (0.76µm)
Number of positions (Bay, row)11; 21

Product details

The 10061913-101CLF: It accepts a standard PCI Express add-in card of 0.062" (1.57mm) thickness, and the 64 contacts match the x4 slot pinout — the most common lane width for internal peripheral cards like NVMe drives, RAID controllers, and GPU risers.

Key Features for the Board Builder

Pick-and-place pads and solder retention features make it reflow-compatible on a standard SMT line.

64 Positions vs. 36 and 164 — Picking the Right Slot Width

This 64-position connector is the x4 PCIe slot. The sibling 10061913-100CLF carries 36 positions (x1 slot) and the 10061913-103CLF carries 164 positions (x16 slot).

Frequently asked questions

Is the 10061913-101CLF RoHS compliant?

Yes, the 10061913-101CLF is ROHS3 compliant per the manufacturer's listing.

What is the mating connector for the 10061913-101CLF?

This female edge connector mates with a standard PCI Express add-in card that has a gold-plated edge finger pattern on a 0.039" (1.00mm) pitch, 0.062" (1.57mm) card thickness, with a x4 lane width (64 positions). The card itself is the mating half — no separate housing is needed.
