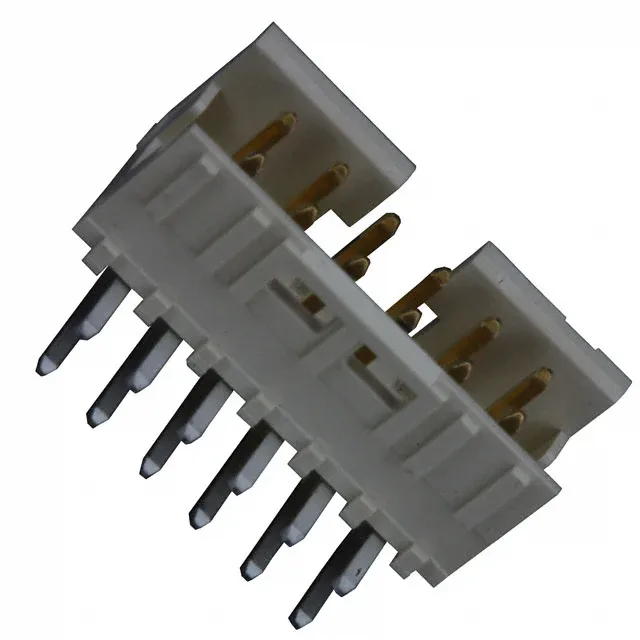

10072354-G01-12ULF — Amphenol product photo
Amphenol

10072354-G01-12ULF Amphenol ICC Minitek 2.00mm Header – 12

MPN10072354-G01-12ULF
Active

Amphenol ICC (FCI) Minitek® 2.00mm header, 10072354-G01-12ULF, 12 positions, dual-row, 0.079" (2.00mm) pitch, right-angle through-hole, shrouded 4-wall, detent lock, gold GXT™ mating finish, 3A, 200V, UL94 V-0.

$1.8100Ref. price · indicative, final on quote
10072354-G01-12ULF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10072354-G01-12ULF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating200V (AC/DC)
Current rating3A
Contact materialCopper Alloy
Insulation colorCream
Insulation height0.240\" (6.10mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions12
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.079\" (2.00mm)
Contact finish - matingGold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board footprint: 2.00mm pitch, dual-row, right-angle

The 10072354-G01-12ULF: A detent lock provides audible retention – the latch clicks when fully seated, resisting vibration-induced disconnect in industrial or transport environments.

Contact finish: 30µin gold GXT on mating face

No need for selective gold on the post.

Current and voltage: 3A per contact at 200V

Derate current if the ambient exceeds 25°C; the housing material's continuous-use temperature sets the practical limit.

Keying slot and mating compatibility

The header includes a keying slot – a molded feature that prevents mating with an incorrectly oriented or wrong-circuit-count receptacle. This is a common safeguard in multi-connector panels where a mis-mate could short a power rail.

Frequently asked questions

What is the pitch and row count of 10072354-G01-12ULF?

0.079" (2.00mm) pitch, dual rows, 12 positions total. Row spacing is also 0.079" (2.00mm).

Does 10072354-G01-12ULF have a keying slot and what is its function?

Yes, it includes a keying slot. The slot prevents mating with an incorrectly oriented or wrong-circuit-count receptacle, reducing the risk of mis-mate damage.
