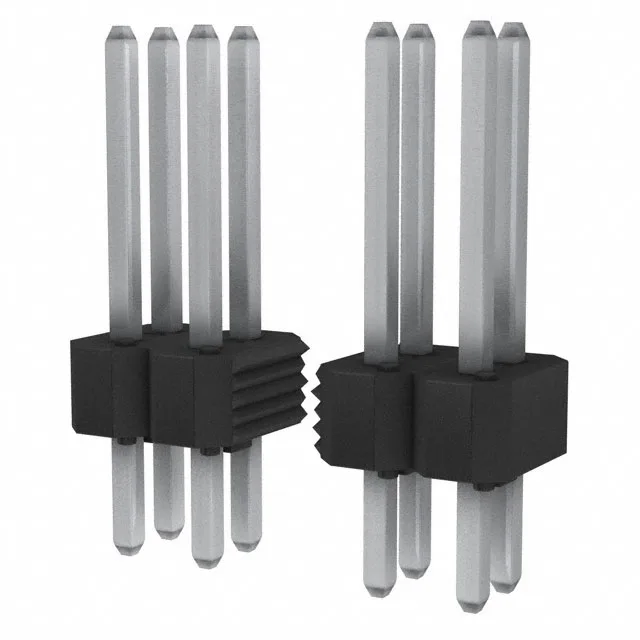

Amphenol FCI BERGSTIK® series, 10076801-406T12LF, 2-row 12-position unshrouded breakaway header, 0.100" (2.54mm) pitch, male pin through-hole, tin-plated phosphor bronze contacts, rated 3A per contact, UL94 V-0, -65°C to 130°C.
10076801-406T12LF BERGSTIK® 12-Pin Unshrouded Header
MPN10076801-406T12LF
Active
Amphenol FCI BERGSTIK® series, 10076801-406T12LF, 2-row 12-position unshrouded breakaway header, 0.100" (2.54mm) pitch, male pin through-hole, tin-plated phosphor bronze contacts, rated 3A per contact, UL94 V-0, -65°C to 130°C.
$1.2012Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.112\" (2.85mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.553\" (14.04mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.323\" (8.20mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Product details
Frequently asked questions
What is the pitch of 10076801-406T12LF?
The mating pitch is 0.100" (2.54mm) on both the row spacing and the pin-to-pin spacing within each row.
