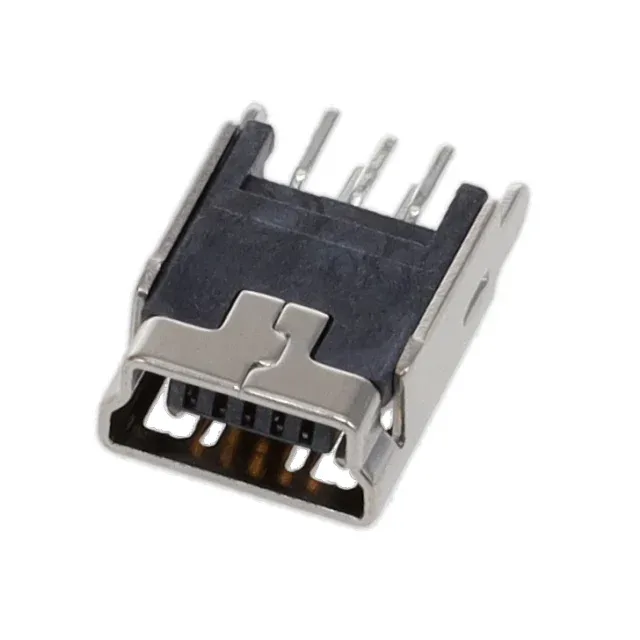

Amphenol FCI 10119313-301TLF, USB - mini B receptacle, 5 contacts, through-hole solder, unshielded, gold contact finish, UL94 V-0, tray.
| Parameter | Value |
|---|---|
| Series | 10119313 |
| Mounting type | Through Hole |
| Connector type | USB - mini B |
| Positions | 5 |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tray |
| Features | Board Guide |
| Shielding | Unshielded |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
It is the receptacle half of the 10119313 series, designed for board-edge mounting where a standard mini-B plug inserts for data and power. The unshielded shell means the connector itself does not provide EMI containment — the system enclosure or a separate shield can must handle that.
Through-hole solder termination gives the 10119313-301TLF mechanical retention that SMT cannot match for a connector that will be mated and unmated repeatedly.
