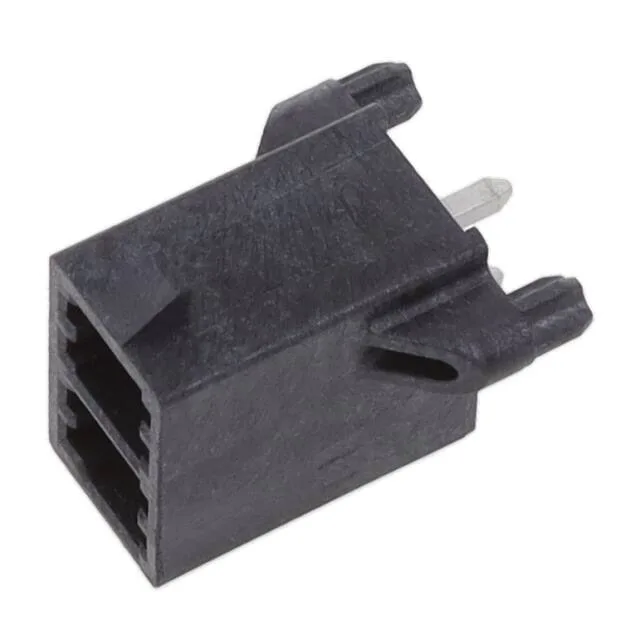

10142708-02000LF — Amphenol product photo
Amphenol

10142708-02000LF - Amphenol ICC Minitek Pwr 5.7 Header

MPN10142708-02000LF
Active

Amphenol ICC (FCI) Minitek® Pwr 5.7 series, 10142708-02000LF, a 2-position, 2-row, shrouded through-hole header, 5.70mm pitch, gold-plated male pins, locking ramp, UL94 V-0, RoHS.

$2.3200Ref. price · indicative, final on quote
10142708-02000LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10142708-02000LF Technical Specifications
ParameterValue
SeriesMinitek® Pwr 5.7
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating600VAC/DC
Operating temperature-40°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.583\" (14.80mm)
Insulation materialLiquid Crystal Polymer (LCP), Halogen Free
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
FeaturesBoard Guide, Glow Wire Compliant
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Medical, Military, Telecommunications
Contact shapeSquare
Rows2
Pitch0.224\" (5.70mm)
Positions2
Row spacing - mating0.224\" (5.70mm)
Contact finish - postTin
Contact length - post0.147\" (3.73mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

5.70 mm Pitch, 2-Position Shrouded Header

The 10142708-02000LF: This is a 2-position, 2-row shrouded header from the Minitek® Pwr 5.7 series by Amphenol ICC (FCI). The 2 positions on a 2-row body means the header is physically wider than the circuit count suggests, so board layout engineers should account for the full body width. A locking ramp fastens the mating half securely, making this suitable for applications where vibration could otherwise work the connection loose.

Through-Hole Termination and Board Guide

Rated at 600 VAC/DC, this header can handle typical industrial power distribution and telecom backplane voltages. Glow wire compliant, adding a safety margin for appliance and medical applications.

RoHS compliant.

Frequently asked questions

What is the pitch and position count of 10142708-02000LF?

The mating pitch is 0.224" (5.70 mm) with 2 positions arranged in 2 rows. The row spacing is also 0.224" (5.70 mm).

Is 10142708-02000LF RoHS compliant?

Yes, it is RoHS compliant per the manufacturer's listing.

Where can I buy 10142708-02000LF?

Sourced to order against your BOM quantity — availability and current pricing confirmed at quote time.
