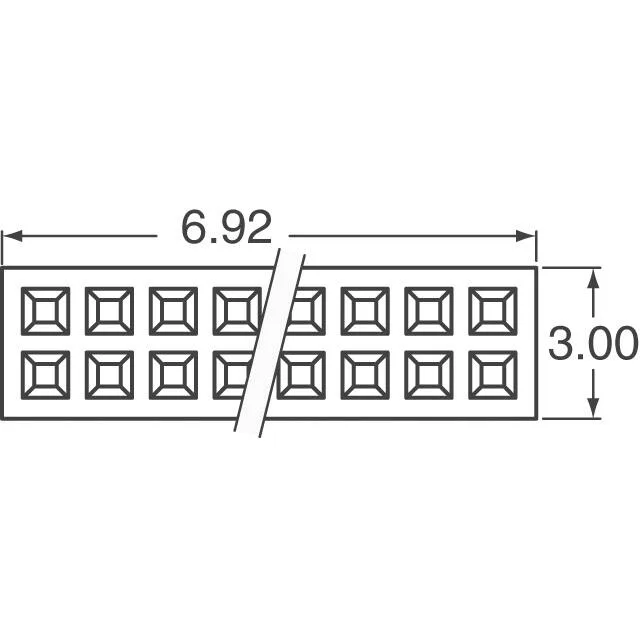

20021311-00008T4LF — Amphenol product photo
Amphenol

20021311-00008T4LF Amphenol ICC (FCI) Minitek127 8-Pin

MPN20021311-00008T4LF
Active

Amphenol ICC (FCI) Minitek127® 1.27mm series, 8-position dual-row receptacle, through-hole, gold-plated mating contacts, UL94 V-0, board-to-board style.

$0.8900Ref. price · indicative, final on quote
20021311-00008T4LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

20021311-00008T4LF Technical Specifications
ParameterValue
SeriesMinitek127® 1.27mm
GenderFemale Socket
Mounting typeThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Operating temperature-40°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.173\" (4.40mm)
Insulation materialPlastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.050\" (1.27mm)
Positions8
Row spacing - mating0.050\" (1.27mm)
Contact finish - postTin
Contact length - post0.094\" (2.40mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating10.0µin (0.25µm)

Product details

Board-to-Board Receptacle for Tight-Pitch Stacking

The 20021311-00008T4LF: This is an 8-position dual-row female socket header from the Minitek127® 1.27mm series, designed for board-to-board interconnects where the PCB real estate is tight.

As a receptacle, it mates with a 1.27 mm pitch pin header — typically the Minitek127 male header series. Mounting is through-hole with a 0.094" (2.40 mm) post length — the solder tails protrude enough for wave solder but keep the overall board stand-off low. The dual-row arrangement with 0.050" (1.27 mm) row spacing creates a 2×4 grid — the pinout is straightforward for routing traces between the two rows.

It is RoHS compliant and available for order through independent distribution.

Frequently asked questions

What is the closest pin-compatible alternative to 20021311-00008T4LF in this Female Socket Headers family?

The Minitek127 series includes other position counts, but a direct drop-in replacement for this 8-position dual-row receptacle would need the same 1.27 mm pitch, through-hole mounting, and gold plating — confirm the BOM position count and footprint before substituting.
