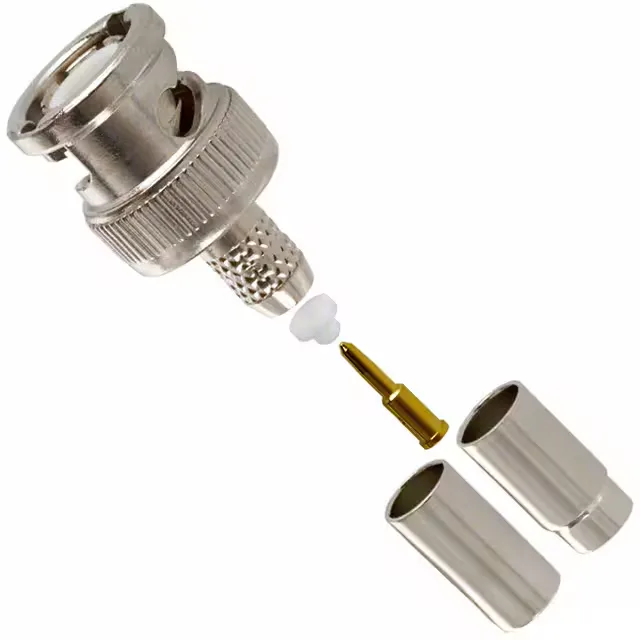

31-5900 — Amphenol product photo
Amphenol

Amphenol RF 31-5900 BNC Plug, 50 Ohm, 4 GHz

MPN31-5900
Active

Amphenol RF BNC plug, male pin, 50 Ohm, 4 GHz, 500 V, 0.2 dB insertion loss, crimp termination, nickel-plated zinc body, gold-plated brass center contact, for RG-59 plenum/Belden 1506/82108/9104 cable.

$4.9000Ref. price · indicative, final on quote
31-5900 datasheet
StockIn Stock (21)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

31-5900 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max4 GHz
Cable groupRG-59 Plenum, Belden 1506, 82108, 9104
Operating temperature-55°C~85°C
Body materialZinc Die Cast
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE), Polymethylpentene (PMP)
Center contact materialBrass
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 2 Ferrules
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.2dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

50-Ohm BNC Plug for RG-59 Plenum and Belden CCTV Cable

The 31-5900: It terminates to RG-59 plenum cable, including Belden 1506, 82108, and 9104, using a crimp-on shield and center contact. The nickel-plated zinc die-cast body and gold-plated brass center contact give it the corrosion resistance and mating-cycle durability expected of a field-installed BNC — 500 cycles on the bayonet lock. Rated 500 V, it handles the voltage levels typical of CCTV video, baseband test signals, and low-power RF distribution where the cable run stays within the 4 GHz bandwidth.

How It Compares to 31-315-RFX and 31-320-RFX

Both 31-315-RFX and 31-320-RFX are also 50-Ohm BNC plugs with the same 4 GHz ceiling, 500 V rating, and 0.2 dB insertion loss. The difference is the cable group: 31-315-RFX fits RG-174, 188, 316, LMR-100 — thinner, more flexible cables — while 31-320-RFX fits RG-58, 141, LMR-195. The 31-5900 is the only one of the three that targets RG-59 plenum and the Belden 1506/82108/9104 series, which are common in plenum-rated CCTV and building-security runs. The 31-320-RFX also offers a solder option on the center contact; the 31-5900 is crimp-only.

Frequently asked questions

What cable does the 31-5900 connect to?

The 31-5900 is designed for RG-59 plenum cable, specifically Belden 1506, 82108, and 9104. It uses crimp termination for both the shield and center contact.

What is the difference between 31-5900 and 31-315-RFX?

Both are 50-Ohm BNC plugs with the same frequency and voltage ratings, but the 31-5900 fits RG-59 plenum cable (Belden 1506/82108/9104), while the 31-315-RFX fits thinner cables like RG-174, 188, and LMR-100. The 31-5900 includes two ferrules; the 31-315-RFX includes one ferrule and an insulator.
