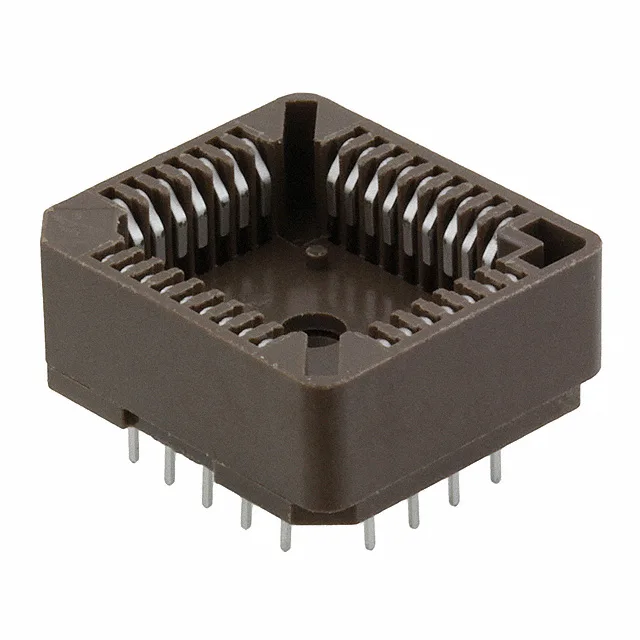

54020-32030LF PLCC Socket 32-Pin Tin 0.050" Mating Pitch

MPN54020-32030LF
Active

Amphenol ICC (FCI) 54020-32030LF, PLCC socket, 32 positions (2 x 7, 2 x 9), 0.100" post pitch, 0.050" mating pitch, 1 A, tin contacts, UL94 V-0 PPS, through hole, tube.

$1.9000Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

54020-32030LF Technical Specifications
ParameterValue
TypePLCC
Mounting typeThrough Hole
Current rating1 A
Operating temperature-40°C~105°C
Housing materialPolyphenylene Sulfide (PPS)
Contact material - postCopper Alloy
Contact material - matingCopper Alloy
Material flammability ratingUL94 V-0
PackageTube
FeaturesClosed Frame
TerminationSolder
Pitch - post0.100\" (2.54mm)
Pitch0.050\" (1.27mm)
Contact resistance20mOhm
Contact finish - postTin
Contact finish - matingTin
Termination post length0.126\" (3.20mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)
Number of positions or pins32 (2 x 7, 2 x 9)

Product details

32-Position PLCC Socket — Dual-Pitch Layout for Through-Hole Stability

The 54020-32030LF is a 32-position PLCC socket from Amphenol ICC (FCI) with a closed-frame design. Rated 1 A per contact with 20 mOhm contact resistance, the socket handles signal-level currents typical for PLCC-packaged microcontrollers, memory, and logic devices.

Board Layout Fit: Post Pitch and Termination Length

The 0.126" (3.20 mm) termination post length is standard for a 1.6 mm thick PCB; if the board is thicker than 2.4 mm, the post may not protrude enough for a reliable solder fillet. The 32-position grid is arranged as 2 x 7 and 2 x 9 — a common PLCC-32 footprint. Confirm the IC's pin 1 indicator aligns with the socket's chamfered corner before soldering.

Comparing the 54020-32030LF with a 44-Position Sibling

The 54020-44030LF is the same socket in a 44-position version (4 x 11 grid). All other specs match: 0.100" post pitch, 0.050" mating pitch, 1 A, tin contacts, PPS housing, UL94 V-0, through hole. The only decision point is the pin count — the 32-position 54020-32030LF fits a PLCC-32, the 44-position fits a PLCC-44.

RoHS compliant, no lead in the plating or housing. The tube packaging is standard for through-hole PLCC sockets — 20 to 30 pieces per tube depending on the factory pack quantity.

Frequently asked questions

Is the 54020-32030LF RoHS compliant?

Yes, the 54020-32030LF is RoHS compliant — no lead in the tin plating or the PPS housing.

Does the 54020-32030LF have a mating connector?

The 54020-32030LF is a PLCC socket — it mates directly with a PLCC-32 integrated circuit package. There is no separate mating connector; the socket's contacts wipe against the IC's leads.

What is a suitable replacement for the 54020-32030LF?

The 54020-44030LF is the same socket in 44 positions — not a pin-for-pin replacement. For a 32-position PLCC socket with a different termination, the 69802-132LF or 69802-032LF are surface-mount versions with thicker tin plating (150 µinch) and phosphor bronze contacts, but they require an SMT footprint instead of through-hole.
