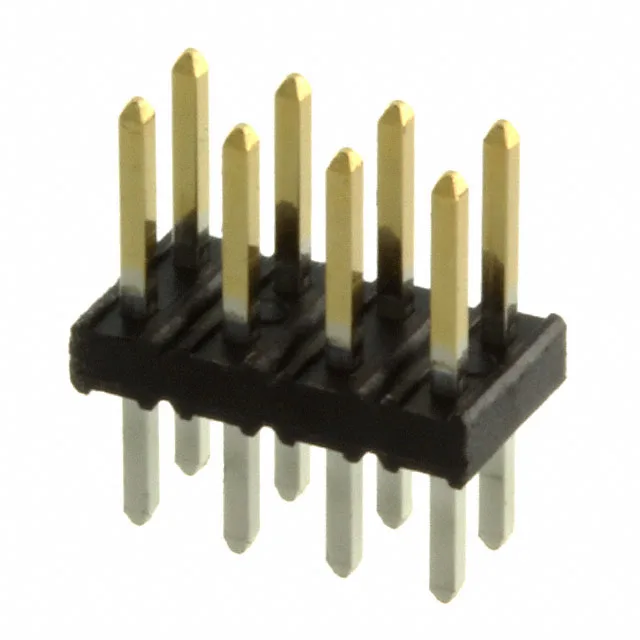

57102-F06-04ULF Minitek 2.00mm Header 8-Pos
FCI 57102-F06-04ULF, Minitek® 2.00mm series, dual-row unshrouded male header, 8 positions, 0.079inch (2.00mm) pitch, 2 rows at 0.079inch spacing, through-hole solder termination, push-pull fastening, gold flash over copper alloy on mating face, tin-plated post 78.7µin (2.00µm), 200V AC/DC, 2A per contact, insulation height 0.059inch (1.50mm), UL94 V-0 thermoplastic, tube package.
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Overall contact length | 0.315\" (8.00mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | Flash |
Frequently asked questions
What connector mates with the 57102-F06-04ULF?
The 57102-F06-04ULF mates with the matching Minitek 2.00mm dual-row receptacle housing at 0.079 inch (2.00 mm) pitch and 0.079 inch row spacing — confirm the receptacle's polarization keys and board-lock type before specifying the pair.
What is the difference between the gold flash on the mating face and the tin-plated post?
The gold flash on the mating side handles low-resistance contact at first mate and tolerates the plug-in cycles; the 78.7 µin (2.00 µm) tin deposit on the post resists oxidation through reflow and long storage — the two coatings serve different sides of the same connection lifecycle.
What compliance ratings does 57102-F06-04ULF carry?
The insulation material is rated UL94 V-0. Confirm full RoHS/REACH status from the manufacturer data sheet if compliance documentation is required for your build.
