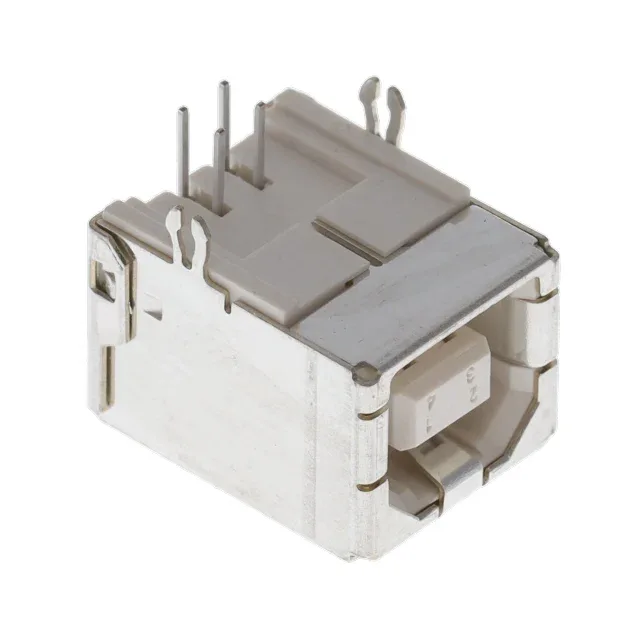

61729-0021BLF — Amphenol product photo
Amphenol

Amphenol 61729-0021BLF USB-B Receptacle, 4-Pos, R/A

MPN61729-0021BLF
Active

Amphenol 61729 series USB-B (Type-B) receptacle, 4 contacts, right-angle through-hole, shielded, gold-plated contacts, board lock, 1A, USB 2.0.

$1.2600Ref. price · indicative, final on quote
61729-0021BLF datasheet
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

61729-0021BLF Technical Specifications
ParameterValue
Series61729
Mounting typeThrough Hole, Right Angle
Connector typeUSB-B (USB TYPE-B)
Current rating1A
Positions4
Mounting featureHorizontal
Operating temperature-55°C~85°C
Insulation colorWhite
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTube
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB 2.0 Type-B Receptacle for Board-Edge Mounting

The gold-plated contacts and 1500 mating cycles suit equipment that sees regular connect/disconnect duty, like instrumentation, industrial control panels, or test fixtures.

Board Lock and Shielding for Reliable USB Ports

The shielded shell in copper alloy provides a low-impedance path to ground, keeping common-mode noise from coupling into the USB differential pair. For a right-angle USB port at the board edge, the combination of board lock and shell grounding is what keeps the connection electrically stable over thousands of cycles.

Current and Temperature Limits

Rated 1A per contact.

Frequently asked questions

Does 61729-0021BLF have a board lock feature?

Yes, it includes a board lock that secures the connector to the PCB during soldering and provides mechanical retention against cable strain.

Where can I buy 61729-0021BLF online?

Sourced to order against your BOM quantity.
