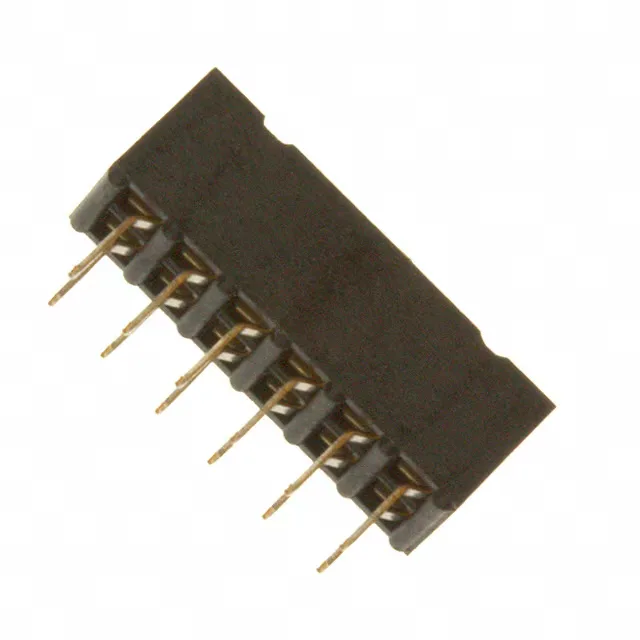

Amphenol ICC (FCI) Minitek® 2.00mm series, 12-position dual-row receptacle, 0.079" (2.00mm) pitch, gold-plated mating contacts, through-hole solder termination, rated 2 A per contact at 200 V, -55°C to 125°C operating range.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 200V |
| Current rating | 2A |
| Operating temperature | -55°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.177\" (4.50mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 12 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 63453-112LF is a 12-position dual-row female socket header from the Minitek® 2.00mm series, designed for board-to-board stacking with a matching pin header. The through-hole solder termination with tin-plated posts (60.0 µinch) provides a reliable board-level joint.
The mating pitch is 0.079" (2.00 mm), with the same row spacing. This is the standard pitch for the Minitek® 2.00mm series.
