Amphenol 66900-214LF — Panel-Mount & In-Line Circular

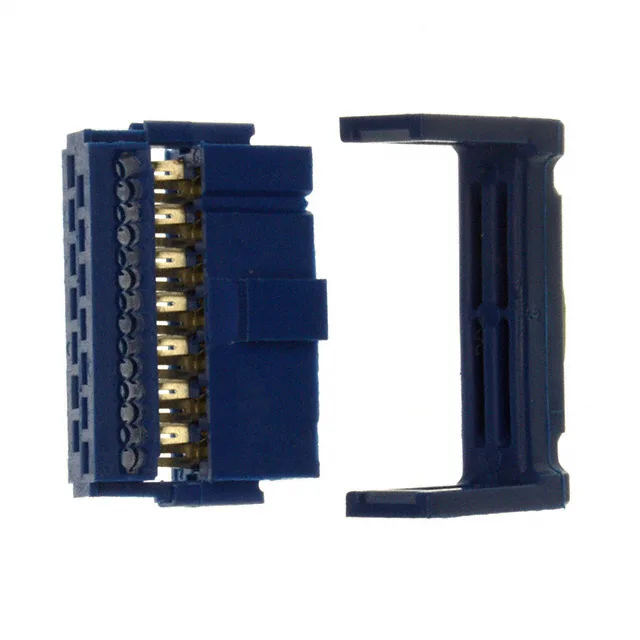

FCI Quickie™ 66900-214LF Receptacle, 14 Pos, IDC

MPN66900-214LF
Active

FCI Quickie™ IDC receptacle, 14 positions, 2 rows, 0.100" (2.54mm) pitch, 28-30 AWG ribbon cable, gold GXT™ 30.0µin plating, free-hanging, blue, tube.

$2.9500Ref. price · indicative, final on quote
Amphenol 66900-214LF datasheet (PDF)
RoHSRoHS Compliant
SeriesQuickie™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

66900-214LF specifications
ParameterValue
SeriesQuickie™
Wire typeRibbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge28-30 AWG
Cable terminationIDC
ColorBlue
Pitch0.100\" (2.54mm)
PackageTube
FeaturesFeed Through, Polarizing Key, Strain Relief
Row spacing0.100\" (2.54mm)
Contact finishGold, GXT™
Rows2
Positions14
Contact finish thickness30.0µin (0.76µm)

Product details

Quickie™ IDC Receptacle for 14-Conductor Ribbon Cable

The FCI 66900-214LF is a 14-position, dual-row IDC receptacle from the Quickie™ series, built for mass-termination to 28-30 AWG ribbon cable. It terminates without stripping or crimping — the IDC (Insulation Displacement Contact) forks pierce the ribbon insulation in one press operation, making it a fast, repeatable interconnect for internal board-to-cable harnesses in test equipment, industrial controllers, and telecom backplanes.

Gold GXT™ Plating and Contact Reliability

Feed-Through, Polarizing Key, and Strain Relief

Three built-in features make this receptacle field-friendly. The feed-through design lets the ribbon cable pass straight through the connector body, so you can daisy-chain multiple receptacles along the same cable run without a break.

Frequently asked questions

Where can I buy the 66900-214LF and what is the price?

The 66900-214LF is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time for the specific BOM quantity — no stock-holding or fixed price is listed here.

Can the 66900-214LF be used with 28 AWG wire?

Yes, the 66900-214LF is rated for 28-30 AWG ribbon cable. The IDC contacts are designed to pierce the insulation of both 28 and 30 AWG conductors in a single press operation.

What is the mating connector for the 66900-214LF?

The 66900-214LF mates with a 14-position, dual-row, 0.100" pitch pin header — typically a male header from the same Quickie™ series or a compatible industry-standard 0.025" square-post header. The polarizing key in the receptacle ensures correct orientation with the matching slot on the header.
