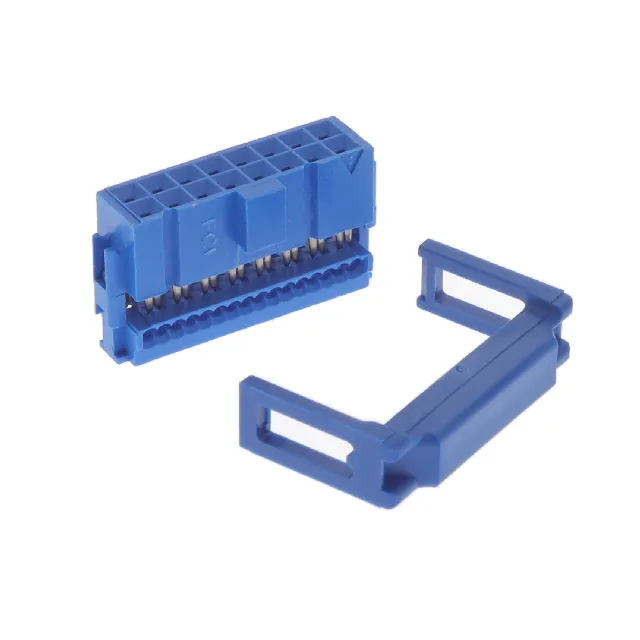

Amphenol FCI 66902-216LF Quickie™ Receptacle, 16 Pos IDC

MPN66902-216LF
Active

Amphenol FCI Quickie™ IDC receptacle, 66902-216LF, 16 positions, 2 rows, 0.100" (2.54mm) pitch, 28-30 AWG, female socket, gold or GXT™ 30.0µin plating, free hanging, latch holder.

$2.6600Ref. price · indicative, final on quote
66902-216LF datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

66902-216LF Technical Specifications
ParameterValue
SeriesQuickie™
Wire typeRibbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLatch Holder
Wire gauge28-30 AWG
Cable terminationIDC
ColorBlue
Pitch0.100\" (2.54mm)
PackageTube
FeaturesFeed Through, Polarizing Key, Strain Relief
Row spacing0.100\" (2.54mm)
Contact finishGold or Gold, GXT™
Rows2
Positions16
Contact finish thickness30.0µin (0.76µm)

Product details

A latch holder secures the mated pair, and the integrated polarizing key prevents reverse insertion. The housing includes a feed-through slot for daisy-chain cabling and a strain-relief feature that clamps the cable jacket, protecting the IDC termination from pull forces.

Wire range and termination style

The 66902-216LF terminates 28-30 AWG ribbon cable via insulation displacement contacts (IDC). The wire type is specifically ribbon cable — not discrete wires — so the harness builder needs the correct cable width for 16 positions at 0.100" pitch. The IDC termination is a one-step process: the cable is pressed into the contact slots, displacing the insulation and making contact with the conductor. No stripping or crimping is required, which speeds up harness assembly for high-volume builds.

The polarizing key ensures the receptacle can only be mated in the correct orientation, eliminating mis-wiring in the harness.

Frequently asked questions

Where can I buy the 66902-216LF and what is the price?

The 66902-216LF is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here. Submit an RFQ for the quantity you need.

What wire gauge works with the 66902-216LF?

The 66902-216LF terminates 28-30 AWG ribbon cable. The IDC contacts are designed for this wire range — using heavier gauge wire will not fit the insulation displacement slots.
