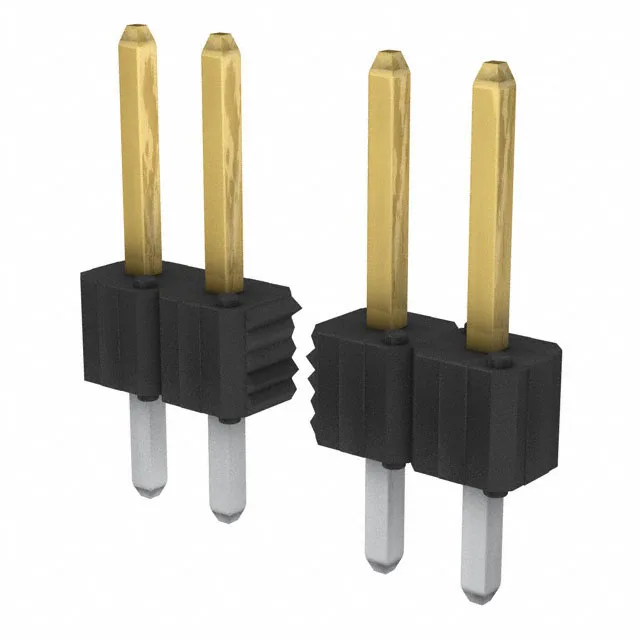

Amphenol ICC (FCI) BERGSTIK® II header, order code 68001-224HLF, 24 positions, single row, 0.100" (2.54 mm) pitch, 3 A per contact, gold or GXT™ mating finish, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.450\" (11.43mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 68001-224HLF is the 24-circuit member of Amphenol ICC's BERGSTIK II unshrouded header line, built for board-to-board stacking with a push-pull fastening interface.
Listed as Active by Amphenol ICC (FCI); ships in bag packaging. Quoted per BOM quantity with no stock-holding claim.
RoHS and REACH compliance documentation is available from Amphenol ICC (FCI) upon request.
