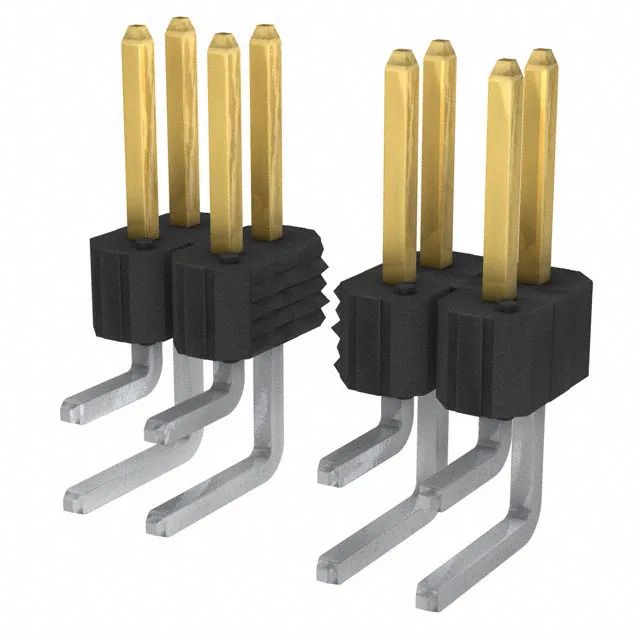

Amphenol ICC (FCI) BERGSTIK® II header, order code 68020-222HLF, 22 positions, dual row, 0.100" (2.54mm) pitch, 3A per contact, unshrouded, through-hole right-angle, solder termination, gold or GXT™ mating finish.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 22 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.095\" (2.41mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Within the BERGSTIK® II 68020 series the 22-position 68020-222HLF sits between the 20-position 68020-220HLF and the 24-position 68020-224HLF — the 0.100" pitch, dual-row footprint, and unshrouded push-pull fastening are shared across the series, so match the position count to circuit count.
