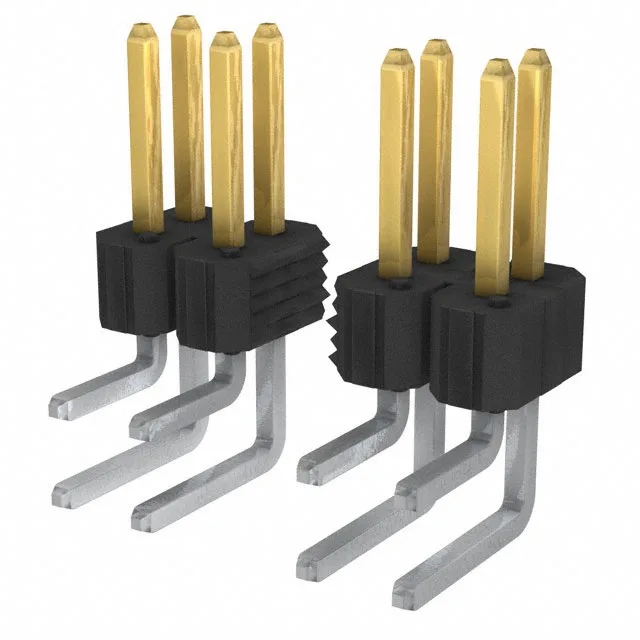

Amphenol ICC (FCI) BERGSTIK® II header, order code 68021-258HLF, 58 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, 110 V, gold-plated male pins, through-hole right-angle, solder termination.
Amphenol ICC (FCI) 68021-258HLF Header, 58-Pos, 0.100" Pitch
MPN68021-258HLF
Active
Amphenol ICC (FCI) BERGSTIK® II header, order code 68021-258HLF, 58 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, 110 V, gold-plated male pins, through-hole right-angle, solder termination.
$5.2985Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 58 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to the 68021-258HLF in the BERGSTIK® II series?
No same-series pin-compatible alternative with the same 58 positions, 0.100" pitch, and right-angle orientation is on record. The BERGSTIK® II family includes other position counts and mounting styles; confirm the exact circuit count and footprint before selecting a different part number.
What compliance documentation does Amphenol ICC (FCI) provide for the 68021-258HLF?
The 68021-258HLF carries a UL 94 V-0 flammability rating for the insulator. RoHS and REACH compliance status is not explicitly listed in the available data; confirm with the manufacturer's documentation or request a certificate of compliance with the order.
