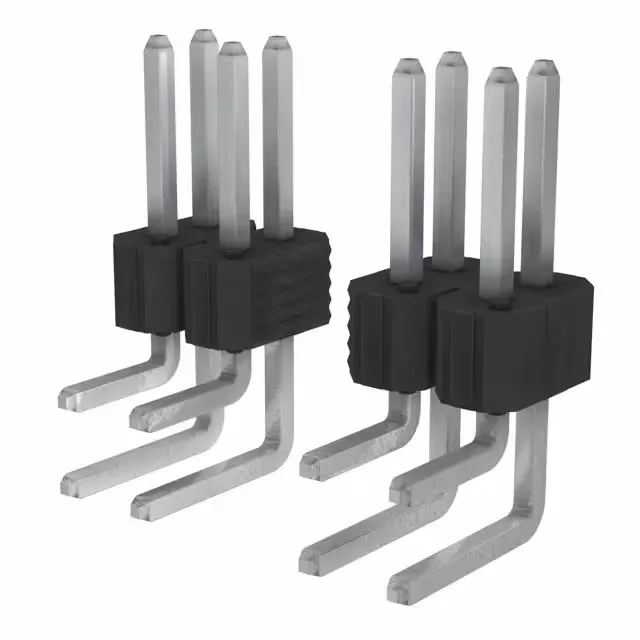

Amphenol ICC (FCI) BERGSTIK® II, Board to Board, Header, 60 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Solder, Tin.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.190\" (4.83mm) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 60 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 68021-460HLF: Each contact is rated 3 A at 110 V, with a tin-plated phosphor bronze mating surface.
The base product number is 68021, which covers the full BERGSTIK® II right-angle header family. If your design needs a different pin count or plating, the 68021 base lets you shift within the same footprint and tooling.
Yes, the 68021-460HLF is RoHS compliant.
