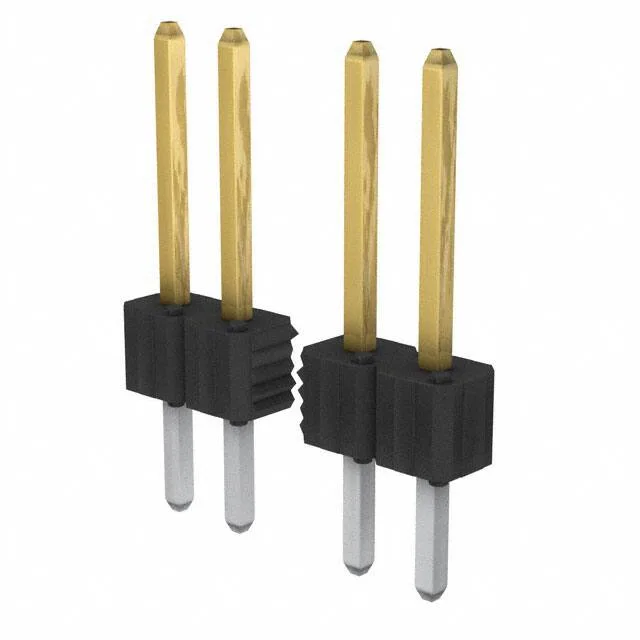

The FCI BERGSTIK® II 68024-110HLF is a 10-position, single-row, unshrouded male pin header on 0.100" (2.54mm) pitch — a standard footprint for board-to-board and wire-to-board interconnects. Through-hole solder termination keeps it compatible with wave-solder assembly lines.
The 0.100" (2.54mm) pitch is the de facto industry standard for breadboard and prototyping layouts — the footprint matches a wide range of mating receptacles and perf-board patterns. 5A per contact is typical for signal-level current; if your load draws more than 5A per pin, you need a higher-current series.
Mating and assembly
The through-hole solder tails (0.150" post length) fit standard plated-through holes.
