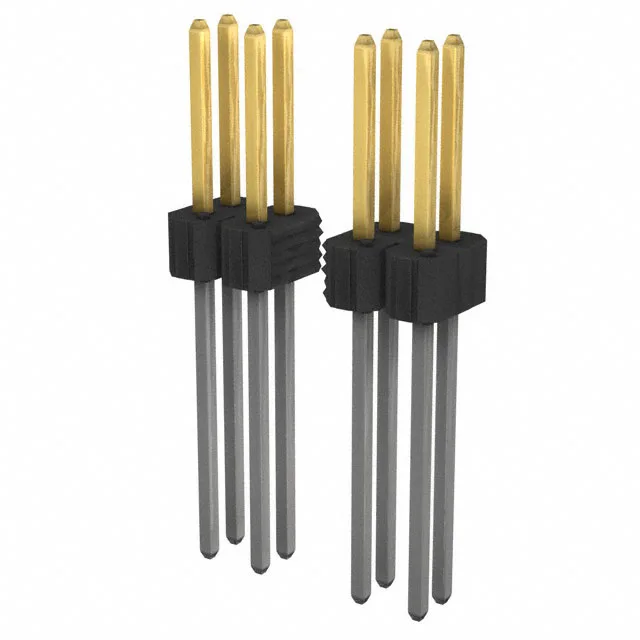

Amphenol ICC (FCI) BergStik II header, order code 68693-170HLF, 70 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold or gold GXT mating contacts, through-hole, solder termination.
Amphenol ICC (FCI) BergStik II header, order code 68693-170HLF, 70 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold or gold GXT mating contacts, through-hole, solder termination.
$6.2215Ref. price · indicative, final on quote
StockIn Stock (26)
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 70 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.520\" (13.21mm) |
| Overall contact length | 0.938\" (23.83mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation does Amphenol ICC (FCI) provide for the 68693-170HLF?
RoHS and REACH compliance documentation is available through the manufacturer.
