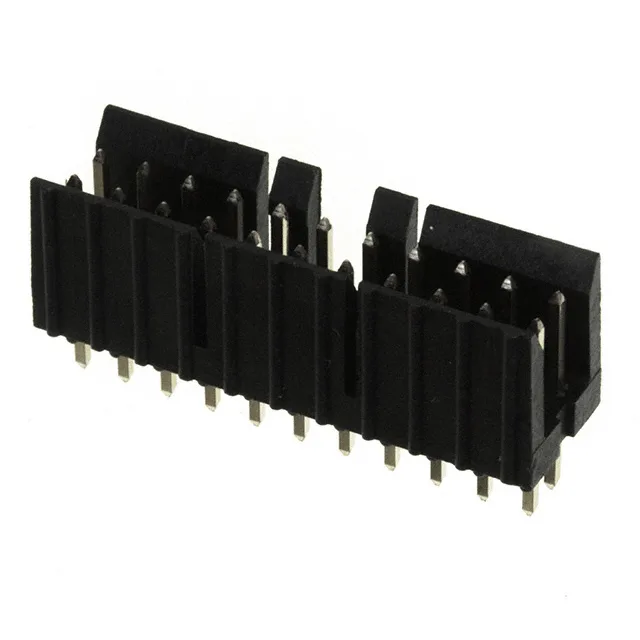

Amphenol ICC (FCI) Mini-PV™, Basics+ header, order code 69168-122HLF, 22 positions, dual row, 0.100" (2.54mm) pitch, gold or GXT™ mating contacts, through-hole, solder termination, shrouded 2-wall, friction lock.
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.386\" (9.80mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 2 Wall |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 22 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 1.100\" (27.94mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 69168-122HLF is the 22-circuit member of Amphenol ICC (FCI)'s Mini-PV™, Basics+ shrouded header line.
The 2-wall shrouded housing with friction lock resists vibration-induced disconnection — the lock engages audibly on mating and holds without a secondary latch.
Amphenol ICC (FCI) is the manufacturer.
