8p8c RJ45 Jack, Cat3, Unshielded

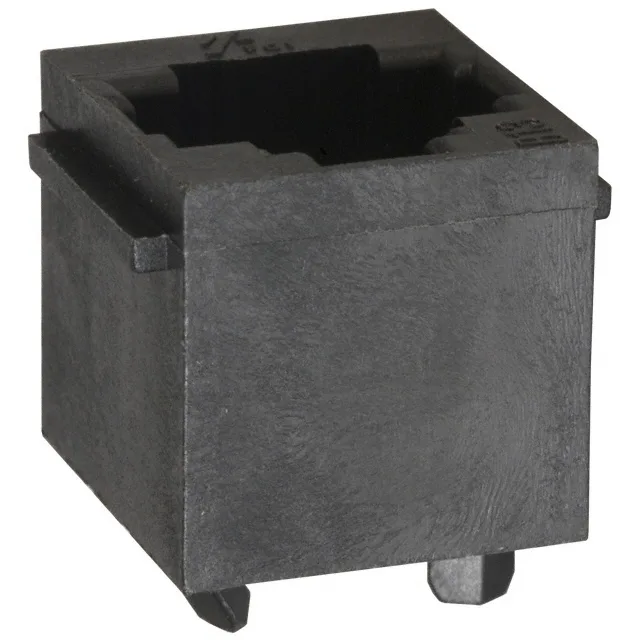

The FCI 69255-001LF is a vertical RJ45 jack from the 69255 series, configured as an 8p8c (8 position 8 contact) receptacle. It is a single-port, single-row, unshielded connector with a Cat3 performance rating.
Cat3 Rating and Unshielded Construction
The Cat3 rating limits this jack to 16 MHz signal bandwidth, which covers legacy Ethernet (10BASE-T) and voice-grade applications but not 100BASE-TX or higher. The unshielded design (no metal shell or grounding tabs) means it relies on the cable's own twisted-pair balance for noise rejection — best suited for low-EMI environments or short patch runs where shielding is not required. The gold-plated contacts (5.00 µin / 0.127 µm) provide adequate corrosion protection for moderate mating cycles in indoor commercial settings.
This jack mounts vertically through a PCB via through-hole solder termination. The housing is molded from polyethylene terephthalate (PET) polyester, rated for the -40°C to 70°C operating range — narrower than many RJ45 jacks, so check ambient temperature in the enclosure.
