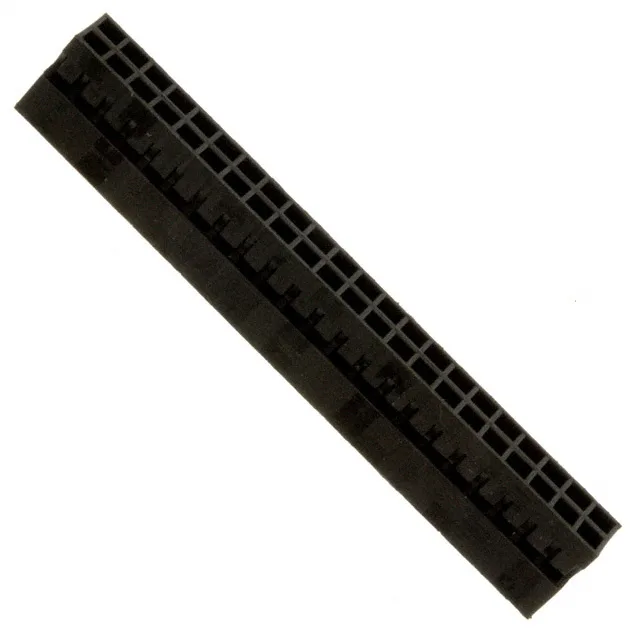

44-Position Dual-Row 2.00 mm Pitch Receptacle Housing
The 69307-044LF: It uses a 0.079" (2.00mm) pitch with the same row spacing, giving you a compact 2-row grid for dense wire-to-board or cable-to-board harnesses. This is the cable-side half — it accepts female socket crimp terminals and mounts free-hanging (in-line), so it terminates a wire bundle that plugs into a matching pin header on the PCB. That puts it well beyond indoor-only gear — it's comfortable in an automotive engine bay, an industrial cabinet near a motor drive, or outdoor telecom enclosures where the sun heats the box. Critical detail on the BOM line: contacts are not included with this housing. You order the crimp terminals separately — make sure the correct female socket terminal for the wire gauge you're running is on the same purchase order. The housing itself is bulk-packaged.
Position-Count Variants and Fit
The 44-position 69307-044LF sits between the 40-position 69307-040LF and the 50-position 69307-050LF in the same series. If your BOM calls for 44 circuits, this is the exact match; the 40-position sibling is a fallback only if your harness can drop four circuits.
