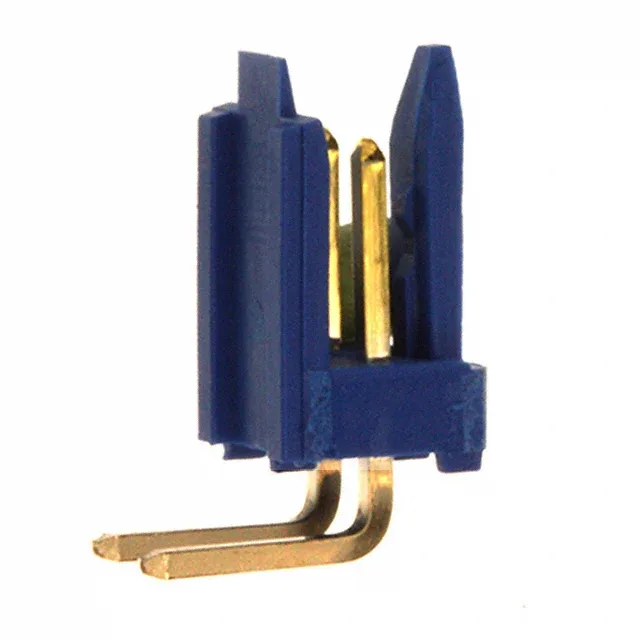

Amphenol ICC (FCI) Dubox™, 76382-302LF, Board to Cable/Wire, Header, Male Pin, 2 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Gold GXT™ Mating, Friction Lock, Bulk
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Current rating | 3A |
| Operating temperature | -40°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.197\" (5.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 76382-302LF: The gold GXT™ mating finish (30.0µin) provides corrosion resistance for repeated mating cycles in field-service or industrial environments. All 2 positions are loaded, so the BOM circuit count matches the pin count exactly.
The pitch is 0.100" (2.54mm), which is the standard 0.100-inch grid for through-hole headers.
Within the same Dubox™ series, the 76382-303LF (3 positions) is the closest functional alternative, sharing the same pitch, orientation, and plating. For a direct 2-position match, the 76382-302LF is the only option in this series.
