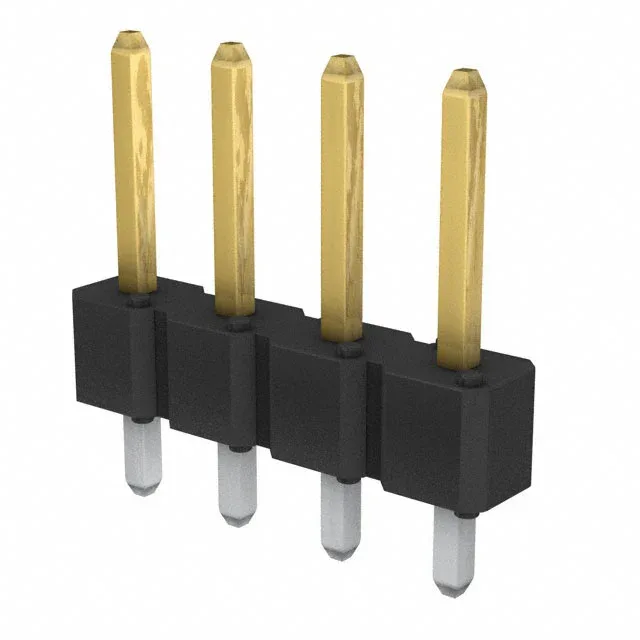

Amphenol ICC (FCI) BERGSTIK® unshrouded pin header, 4 positions, single row, 0.100" (2.54mm) pitch, through-hole solder termination, 3A per contact, gold mating finish.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.095\" (2.41mm) |
| Overall contact length | 0.425\" (10.80mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Within the same 77311-101-xxLF family, the 2-position variant (77311-101-02LF) shares identical pitch, plating, current rating, and overall length. The 14-position sibling (77311-101-14LF) also matches all other specs but adds 10 more circuits on the same single-row 2.54mm pitch. No functional substitution needed – just a BOM position count decision.
The 77311-101-02LF is the same BERGSTIK® header with identical pitch, plating, and current rating, but only 2 positions. If your BOM requires 4 positions, the 77311-101-04LF is the correct part – no direct second-source exists.
