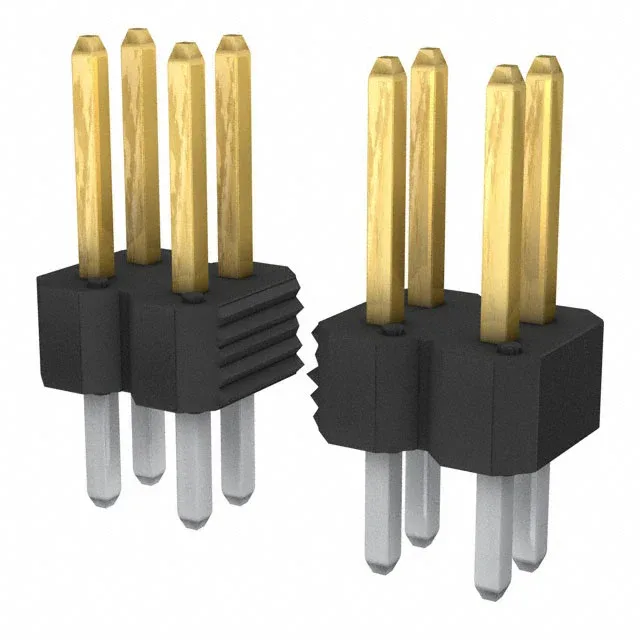

The 77313-102-34LF is the 34-circuit member of Amphenol ICC (FCI)'s BERGSTIK breakaway header line, dual-row, 0.100" (2.54mm) pitch.
Active production status
Sourced per RFQ against BOM quantity; availability confirmed at time of order.
Amphenol ICC (FCI) BERGSTIK® header, breakaway, order code 77313-102-34LF, 34 positions, dual row, 0.100" (2.54mm) pitch, 3A per contact, unshrouded, through-hole, solder termination, gold or GXT™ mating contact finish.
$1.1049Ref. price · indicative, final on quote
StockIn Stock (26)
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation does Amphenol ICC (FCI) provide for 77313-102-34LF?
RoHS and REACH compliance documentation is available from the manufacturer.
