BERGSTIK breakaway, 6 positions, 2.54 mm pitch

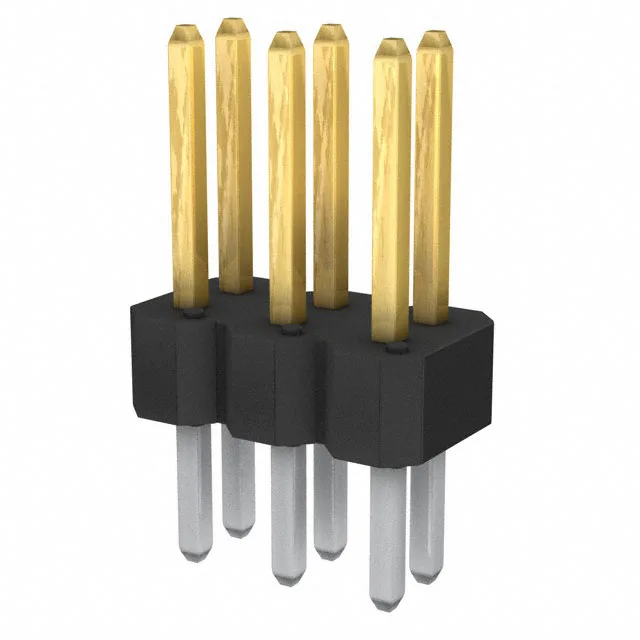

The 77313-190-06LF is the 6-circuit member of Amphenol ICC (FCI)'s BERGSTIK® unshrouded breakaway header line, a dual-row square-pin header for board-to-board or cable connections.
Amphenol ICC (FCI) BERGSTIK® header, breakaway, order code 77313-190-06LF, 6 positions, dual row, 0.100" (2.54mm) pitch, 3A per contact, gold or GXT™ mating finish, through hole, solder termination.
$0.3560Ref. price · indicative, final on quote
StockIn Stock (26)
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.159\" (4.05mm) |
| Overall contact length | 0.525\" (13.34mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the style of the 77313-190-06LF connector?
The style is Board to Board or Cable, as an unshrouded breakaway header.
What compliance documentation does Amphenol ICC (FCI) provide for 77313-190-06LF?
The insulation material is rated UL94 V-0.
