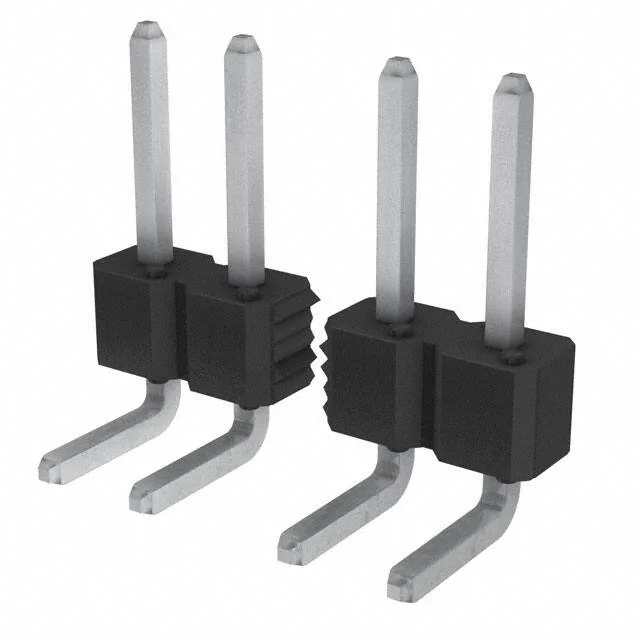

Amphenol ICC (FCI) BERGSTIK header, order code 77315-418-35LF, 35 positions, single row, 0.100" (2.54mm) pitch, 3 A per contact, tin-plated male pins, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.094\" (2.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 35 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 77315-418-35LF is the 35-position single-row member of the Amphenol ICC BERGSTIK breakaway header line.
Insulation height is 0.094" (2.40mm) — the low profile leaves clearance for adjacent components on the board.
RoHS and REACH compliance documentation is available from Amphenol ICC.
