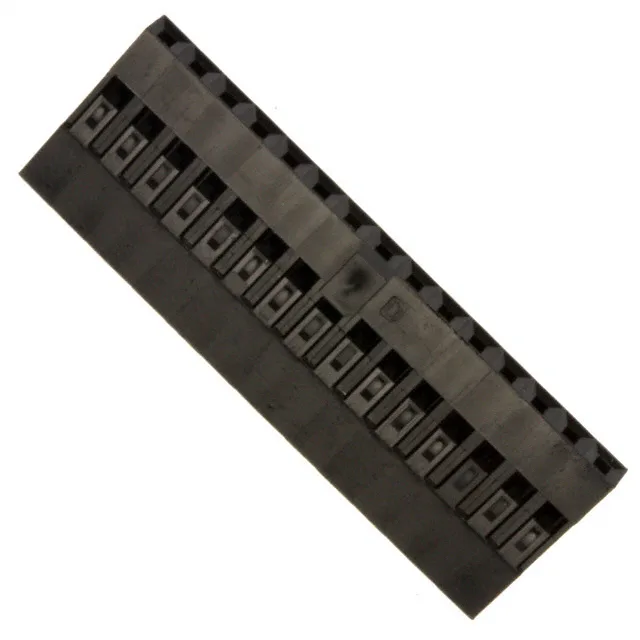

Amphenol FCI Mini-PV™, Basics+ receptacle housing, 15 positions, 1 row, 0.100" (2.54mm) pitch, crimp termination, free hanging, black, polarizing key, contacts not included.
| Parameter | Value |
|---|---|
| Series | Mini-PV™, Basics+ |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Polyphenylene, Modified |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Polarizing Key |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 15 |
The 78211-015LF: It accepts female socket crimp terminals and mounts free-hanging (in-line) — no PCB footprint needed. A polarizing key on the housing prevents mis-mating with unkeyed headers, which saves rework on the assembly line.
This housing ships empty — the spec line notes "Contacts Not Included." Order the matching Mini-PV female socket crimp terminals separately.
No — the 78211-015LF ships as an empty housing. The spec line explicitly notes "Contacts Not Included." You must order the matching Mini-PV female socket crimp terminals separately for the harness build.
The pitch is 0.100" (2.54mm), which is the standard Mini-PV spacing. This matches the board footprint for the mating header and keeps the cavity-to-cavity spacing consistent across the series.
