50 Ohm TNC Plug for RG-58 and LMR-195 — Kit Includes All Six Pieces

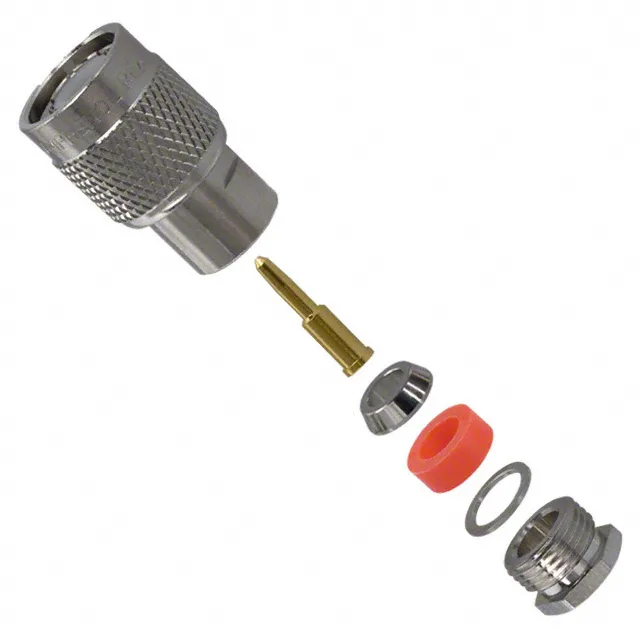

The 79875-RFX is a TNC plug, male pin, from Amphenol RF, designed for field-terminated coaxial cable assemblies. The kit includes six pieces: the connector body, clamp, contact, gasket, top hat, and washer — everything needed to complete a single termination.
Cable Group Match — Which Reel to Grab
This plug is built for RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907. The clamp-style shield termination and crimp contact termination work with the standard crimp die for these cable types. Match the body to the reel — using a cable outside this group risks an impedance mismatch or a loose ferrule that drifts under vibration.
Weatherproof and Threaded — Field-Service Ready
Rated weatherproof (IP ingress protection) and fastened with a threaded coupling, this TNC plug holds its mate under vibration and resists moisture ingress in outdoor or washdown environments. The 500 mating cycles mean it is built for reconnect duty — antenna swaps, test-point changes, or portable gear that gets disconnected and reconnected regularly.
Active lifecycle — no end-of-life notice on record.
