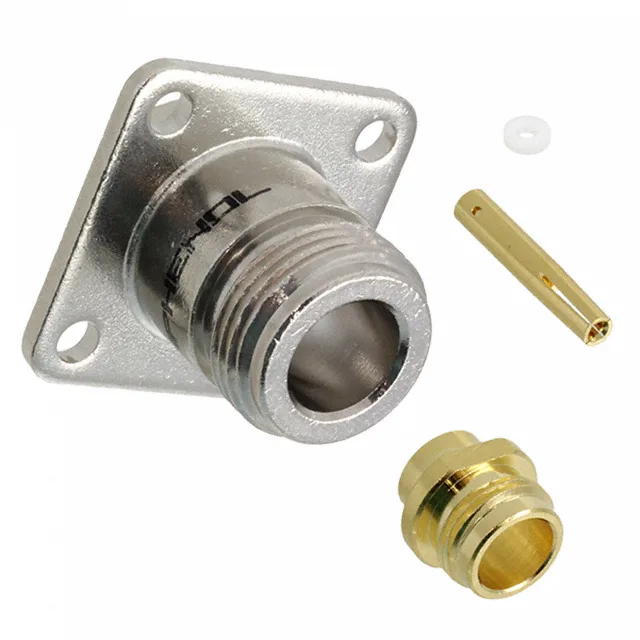

82-6163 — Amphenol product photo
Amphenol

Amphenol 82-6163 N Type Jack, 50 Ohm, 11 GHz, Panel Mount

MPN82-6163
Active

Amphenol N Type jack, female socket, 50 Ohm, 11 GHz, 1500 V, panel mount flange, solder termination, RG-401 semi-rigid cable, gold-plated center contact.

$13.0200Ref. price · indicative, final on quote
82-6163 datasheet
StockIn Stock (31)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

82-6163 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating1500 V
Frequency - max11 GHz
Mounting featureFlange
Cable groupRG-401 (.250\" Semi Rigid)
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Insulator, 1 Nut
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

N Type Jack for RG-401 Semi-Rigid Coax

The 82-6163: The threaded coupling and flange mount make it a standard choice for fixed RF ports on test equipment, amplifiers, and antenna feeds where the cable run is permanent and the connector sees infrequent mate cycles.

This jack is built for RG-401 semi-rigid coax — the 0.250" outer diameter cable that holds its shape once bent.

RF Performance and Mechanical Limits

The 1500 V voltage rating and 11 GHz bandwidth cover high-power transmitter outputs and microwave links through C band.

Frequently asked questions

What is the impedance of 82-6163?

The 82-6163 is a 50 Ohm N Type jack, matching the standard impedance for RF test and telecom systems.

What cable group does 82-6163 work with?

This jack is designed for RG-401 (.250" semi-rigid) cable. The center contact and insulator are sized for that specific coax diameter and dielectric.
