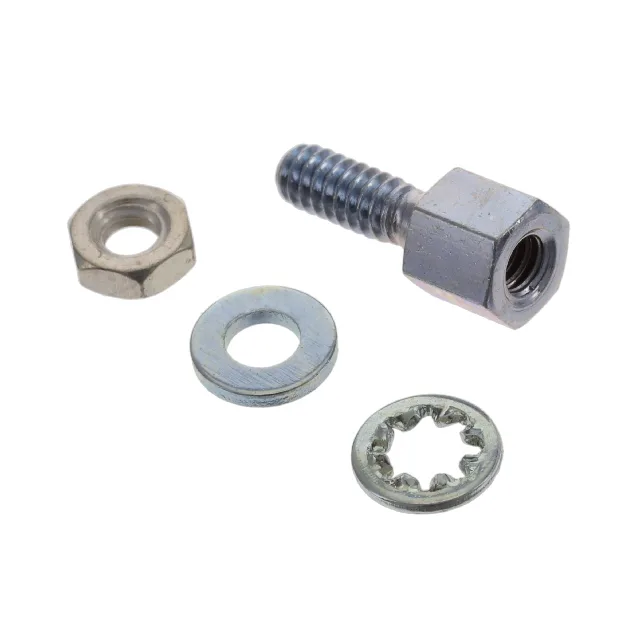

863001060LF — Amphenol product photo
Amphenol

Amphenol 863001060LF D-Sub Jackscrew Socket, 4-40, 0.327"

MPN863001060LF
Active

Amphenol 863001060LF D-Sub jackscrew socket, 4-40 thread, 0.327" (8.30mm) length below head, 0.272" (6.90mm) threaded portion, Bulk, RoHS Compliant.

$0.9200Ref. price · indicative, final on quote
863001060LF datasheet
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

863001060LF Technical Specifications
ParameterValue
Accessory typeJackscrew Socket
PackageBulk
Thread size4-40 Socket, 4-40 Screw
Length - below head0.327\" (8.30mm)
For use with (Related products)D-Sub Connectors
Length - threaded portion below head0.272\" (6.90mm)

Product details

What This Jackscrew Does in a D-Sub Assembly

The Amphenol 863001060LF is a jackscrew socket for standard D-sub connectors — the threaded hardware that pulls the plug and receptacle together and locks them against vibration. It uses a 4-40 UNC thread on both the socket and the screw, which is the standard thread for standard-density D-subs. The overall length below the head is 0.327" (8.30mm), with 0.272" (6.90mm) of that being the threaded portion that engages the mating screw. It ships in Bulk packaging.

Thread Size and Hardware Compatibility

The 4-40 thread is the standard UNC size for standard-density D-sub connectors — not the metric M3 found on some high-density or European-sourced shells. If your panel hardware or mating connector uses UNC 4-40 jackscrews, this is the direct fit. If your assembly uses M3 hardware, the sibling 863001061TLF (same 0.327" length, 4-40 socket but with an M3 screw) is the one to reach for.

Frequently asked questions

What is the thread size of 863001060LF?

The thread size is 4-40 Socket, 4-40 Screw — standard UNC for standard-density D-sub connectors.

Is 863001060LF RoHS compliant?

Yes, the 863001060LF is listed as RoHS Compliant.

What is the difference between 863001060LF and 863001061TLF?

Both use a 4-40 socket, but the 863001061TLF uses an M3 screw instead of a 4-40 screw, and has a longer 0.512" (13.00mm) overall length. The 863001060LF is the 4-40-to-4-40 version at 0.327" length.
