50-Position D-Sub Backshell with 45° Cable Exit

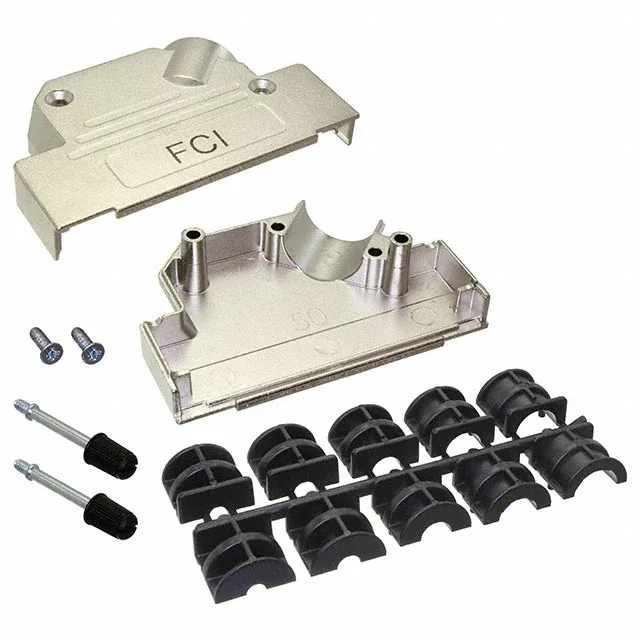

The Amphenol 8655MHRA5001KLF is a two-piece metal backshell for standard D-subminiature connectors, sized for 50-position and high-density 78-position shells in shell size D. The zinc die-cast body is nickel-plated and shielded, with a 45° cable exit that routes the round cable bundle at an angle off the connector axis — useful when the straight path is blocked by an enclosure wall or adjacent hardware. Assembly hardware is included: 4-40 mating screws and a strain relief clamp that grips the cable jacket. The backshell clamps over the D-Sub connector after termination, then the two halves screw together, trapping the cable and providing mechanical strain relief plus EMI shielding continuity through the metal shell.
Position Count and Shell Compatibility
This backshell fits the D shell size, which covers standard 50-position D-Subs and high-density 78-position connectors. The 50-position variant (8655MHRA5001KLF) is the largest standard-density option in the 8655MHRA series; the same shell also accommodates the 15-position (8655MHRA1501KLF) and 9-position (8655MHRA0901KLF) versions, which use smaller shell sizes. If your build uses a 50-position or HD78 connector, this backshell matches the shell footprint.
