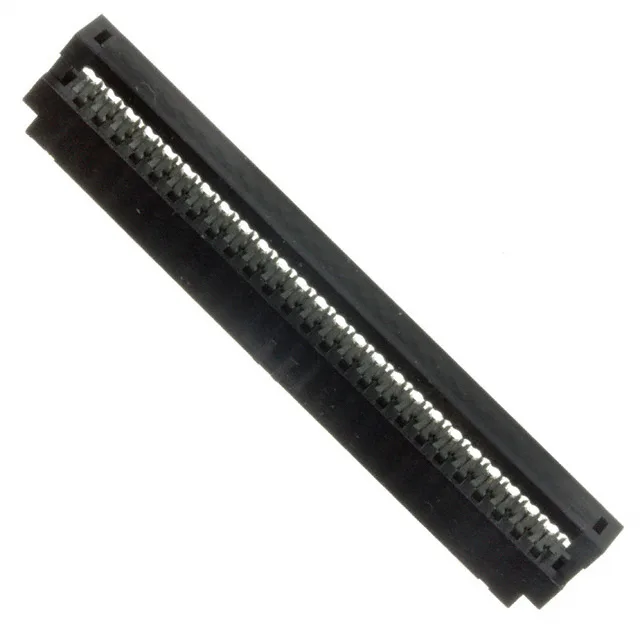

The Amphenol FCI 89947-350LF is the 50-position member of the Minitek® 2.00mm series, a dual-row receptacle designed for mass-termination to 28 AWG ribbon cable via IDC contacts. The 0.079" (2.00mm) pitch on both rows keeps the board footprint compact for a 50-circuit interconnect — each position lands on a 2.00 mm grid, so the total width across the two rows is about 1.97" (50 mm). The black housing is free-hanging (in-line), with a feed-through design and a polarizing key to prevent mis-mating.
IDC Termination and Ribbon Cable Fit
Termination is insulation-displacement (IDC) — the contacts pierce the ribbon cable insulation in one press operation, no stripping or crimping per wire. The specified wire gauge is 28 AWG, which is the standard size for 0.079" (2.00 mm) pitch ribbon cable. The feed-through feature allows the cable to pass straight through the housing, simplifying daisy-chain or pass-through wiring in a harness.
