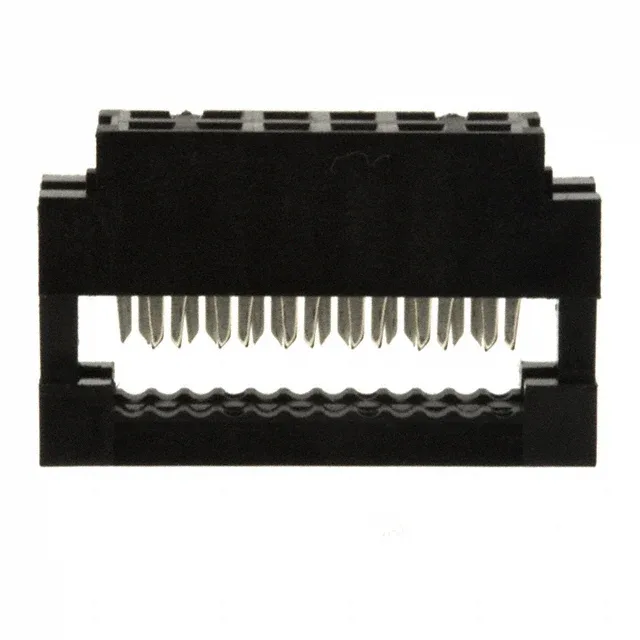

89947-712LF — Amphenol product photo
Amphenol

Amphenol ICC 89947-712LF Minitek 2.00mm Receptacle, 12 Pos

MPN89947-712LF
Active

Amphenol ICC Minitek® 2.00mm receptacle, 12 positions, 2 rows, IDC termination, 28 AWG ribbon cable, gold 30.0µin contacts, friction lock, black, RoHS.

$1.4000Ref. price · indicative, final on quote
89947-712LF datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

89947-712LF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
Wire typeRibbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeFriction Lock
Wire gauge28 AWG
Cable terminationIDC
ColorBlack
Pitch0.079\" (2.00mm)
PackageTube
FeaturesFeed Through, Polarizing Key
Row spacing0.079\" (2.00mm)
Contact finishGold
Rows2
Positions12
Contact finish thickness30.0µin (0.76µm)

Product details

Minitek 2.00mm IDC Receptacle — 12-Position, Gold Contacts

The Amphenol ICC 89947-712LF is a 12-position receptacle in the Minitek® 2.00mm series, designed for mass-termination to 28 AWG ribbon cable via IDC contacts.

What Mates with 89947-712LF

This receptacle mates with the matching Minitek 2.00mm pin header (male, straight or right-angle, with the same 0.079" (2.00mm) pitch and dual-row spacing). The polarizing key in the housing prevents reversed or offset mating, which is a common source of bent pins during blind assembly.

Termination and Wire Handling

IDC termination to 28 AWG ribbon cable means the connector is loaded onto the cable in a single press operation — no individual wire stripping or crimping. The feed-through feature allows the cable to pass through the housing, simplifying daisy-chain routing in harness assemblies. The free-hanging (in-line) mounting suits cable-to-board connections where the receptacle floats on the wire, not fixed to a panel.

Frequently asked questions

Where can I buy 89947-712LF?

The 89947-712LF is sourced through independent distribution and quoted to order against an RFQ. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.

What is the mating connector for 89947-712LF?

The mating half is a Minitek 2.00mm pin header (male, dual-row, 0.079" (2.00mm) pitch) with a matching friction-lock ramp. The 12-position header from the same series — such as the 89947-712LF's counterpart — mates directly.

Is 89947-712LF RoHS compliant?

Yes, the 89947-712LF is RoHS compliant.

What is the pitch of 89947-712LF?

The pitch is 0.079" (2.00mm) between contacts, with the same 0.079" (2.00mm) row spacing.
