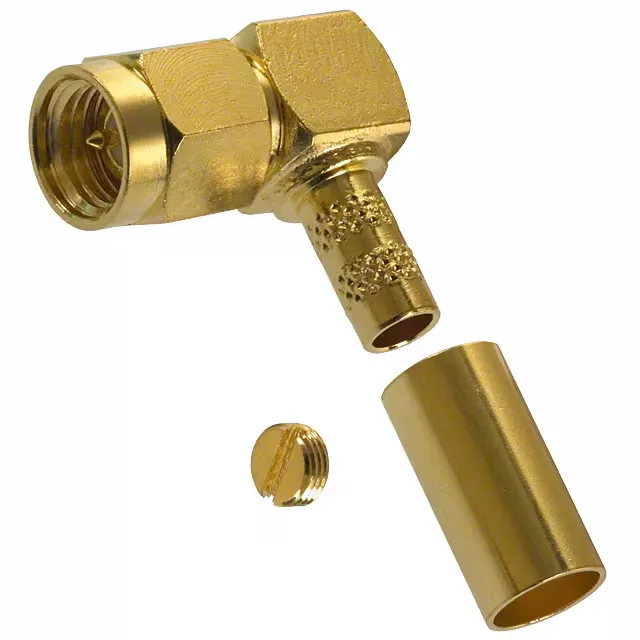

901-9874 — Amphenol product photo
Amphenol

Amphenol SMA Plug 901-9874, 50 Ohm, 12.4 GHz, Bulk

MPN901-9874
Active

Amphenol SMA plug, male pin, 50 Ohm, 12.4 GHz, gold body, crimp shield termination, solder contact, cable group RG-55/142/223/400, bulk pack with 5-piece kit.

$14.2000Ref. price · indicative, final on quote
901-9874 datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

901-9874 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max12.4 GHz
Cable groupRG-55, 142, 223, 400
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Includes5 pcs - 1 Connector, 1 Contact, 1 End Cap, 1 Ferrule, 1 Heat Shrink
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

SMA Plug for RG-55/142/223/400 — What's in the Kit

The Amphenol 901-9874 is an SMA plug, male pin connector built for RG-55, 142, 223, and 400 series coaxial cables. It comes as a 5-piece assembly kit: the connector body, a contact, an end cap, a ferrule, and a heat shrink tube — everything needed to terminate one cable end without sourcing extra hardware.

50 Ohm, 12.4 GHz — Where the Bandwidth Lands

The threaded coupling gives a positive mechanical mate that holds the impedance steady through vibration.

Termination Sequence — Crimp Shield, Solder Center

Shield termination is crimp, center contact is solder. The kit includes the ferrule for the braid crimp and the heat shrink to seal the cable entry.

The 901-9867-RFX is the same SMA plug style but built for RG-405 semi-rigid cable (.085" /.086") with a solder shield termination instead of crimp. If your BOM calls for semi-rigid, the 901-9867-RFX is the correct fit; for RG-55/142/223/400 flexible cable, the 901-9874 with its crimp shield is the one to use. Both are active, both carry gold bodies and 500 mating cycles.

Frequently asked questions

What cable does the Amphenol 901-9874 connector fit?

The 901-9874 fits RG-55, 142, 223, and 400 coaxial cables. The kit includes the ferrule and heat shrink sized for these cable groups.

Does 901-9874 come with all necessary parts?

Yes, the bulk pack includes 5 pieces per unit: the connector body, one contact, one end cap, one ferrule, and one heat shrink tube — enough to terminate one cable end.
